Lex119S-19"1U Embeded System |
|
put in clip photo for enlarged image |
|
|
Feature : |
- 19"1U System Case provides 1 - 2 pcs MainBoard and 1 - 2 pcs external Power Adapter space .
- Customer can apply with 3.5" HDD / 2.5" HDD / Slim Type CD-Rom upon the application request.
|

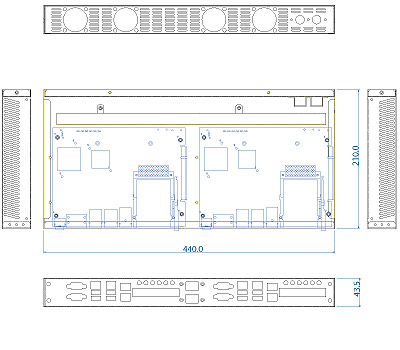

Dimension: |
- 44.5 (H) x 44.0 (W) x 21.4 (D) cm
|
Weight: |
8 Kgs ( 2 pcs M/B ) , 9 Kgs ( 4 pcs M/B ) |
Ordering Information: |
Product Code |
M/B type |
Description |
Intel Solution |
DX1227S |
|
Celeron M 1 GHz, Serial 1 x 2, USB 4 x 2, Lan 4 x 10/100 Realtek x 2 , HDD / CF, PS: Ext. 60W x 2
|
DX1226S |
|
Celeron M 1 GHz, Serial 1, USB 4, Lan 4 x 10/100 Realtek, HDD / CF, PS: Ext. 60W x 1 |
DX1702S |
|
Intel C2D socket, Serial 1 x 2, USB 2 x 2, Lan 4 x Realtek 10/100 x 2, HDD / CF, PS: Ext. 60W x 2 |
DX1701S |
|
Intel C2D socket, Serial 1, USB 2, Lan 4 x Realtek 10/100, HDD / CF, PS: Ext. 60W x 1 |
VIA Solution |
DX1522S |
|
C7 V4 1GHz, serial 2 x 2, USB 2 x 2, Lan 3 x 10/100 Realtek x 2, HDD / CF , PS : Ext. 60W x 2 |
DX1521S |
|
Eden ULV 1GHz, serial 2, USB 2 , Lan 3 x 10/100 Realtek , HDD / CF , PS : Ext. 60W x 1 |
DX1582S |
|
C7 V4 1GHz, serial 1x2 , USB 2x2, Lan 4 x 10/100 Realtek x 2, PCMCIA 2S x2 , HDD / CF, PS :Ext. 60W x 2 |
DX1575S |
|
Eden ULV 1GHz, serial 1 , USB 2, Lan 4 x 10/100 Realtek, PCMCIA 2S , HDD / CF, PS: Ext. 60W x 1 |
|
|
|
|
|
