Barebone System
KM261U |
|
|
|

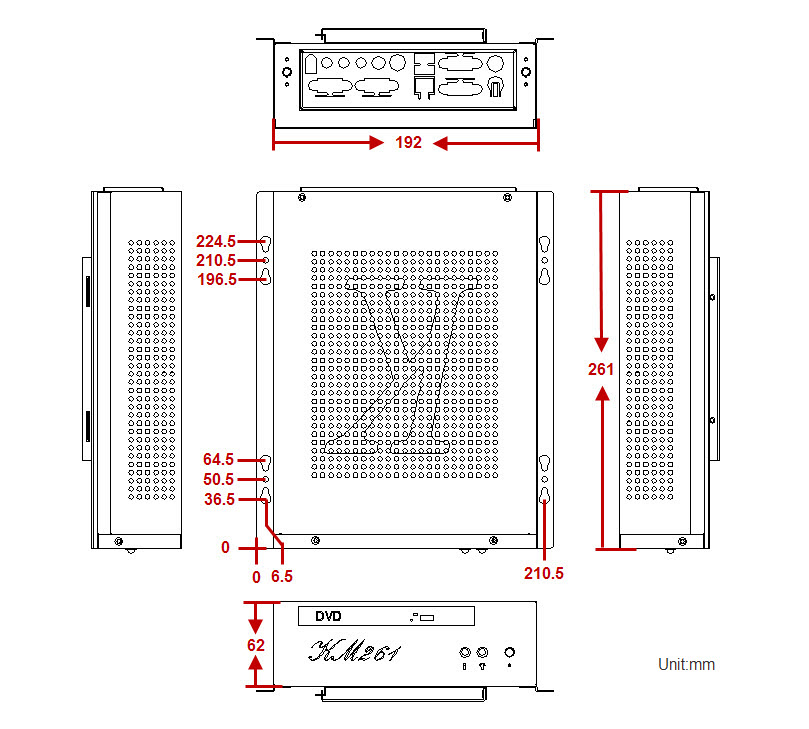

KM261U-Mechanic Drawing |
Design feature: |
- enable a low cost fanless Mini-ITX solution possibilities
-
cable friendly, easy installation
-
High efficency > 90%
|
Front Panel : |
Power Switch
HDD/ Power/LAN/Bluetooth LED.
Two USB
Ports |
Power : |
External Power 60W |
Storage: |
2 x 2.5" HDD |
Dimension: |
W 192 x D 261 x H 62 mm |
Download
|
|
Ordering Information: |
KM261U With following Mainboards |
| Order No. |
Description |
Mainboard |
| Intel
Solution |
840 |
- Intel® 2nd Generation Core i7/i5/i3, SO-DIMM3 Up to 16GB DDR3 non-ECC UDIMM
- 1333/1066MHz , Dual Gigabit Ethernet, 8x USB 2.0 ports, (6 rear + 4 via header + 1 Type-A),
- vPro 7.0 AMT7.0, TPM 1.2 onboard
|
KM261U-X9SCV-QV4 |
| call |
- ICH8M Chipset / Dual Core ATOM 525 1,8Ghz
- 2* DDR3 SO bis 4GB, 3* Giga LAN
- 6* USB 2.0, VGA,5* RS-232, 2* USB Front,
- 2* 2.5" Drive Bay SATA ,AUDIO IN/OUT,
- incl.: VESA75/100 Mount Kit
|
KM261U- KINO-PV-D5253 |
| call |
- ICH8M Chipset / Dual Core ATOM 525 1,8Ghz
- 2* DDR3 SO bis 4GB, 2* Giga LAN
- 6* USB 2.0, VGA, 3* RS-232, 2* USB Front,
- 2* 2.5" Drive Bay SATA ,AUDIO IN/OUT,
- incl.: VESA75/100 Mount Kit
|
KM261U- KINO-PV-D5252 |
| 625 |
- Intel® Atom™ processor D510 (dual-core 1.66 GHz /512 KB x2 L2 cache)
-
Six-channel Intel® High Definition Audio
-
10/100/1000 Mb/s LAN
-
7 USB 2.0 ports
-
2 * PS/2 ports
|
D510MO |
| 626 |
- Intel® Atom™ Processor N270 integrated
(1.6 GHz / 512 KB L2 Cache / 533 System Bus) -
2+2 channel HD audio
-
7 * USB 2.0 ports
-
via VGA and DVI connectors
-
10/100/1000 Mb/s LAN
|
D945GSEJT |
|
|
|
|
|
