IMBA-Q370 |

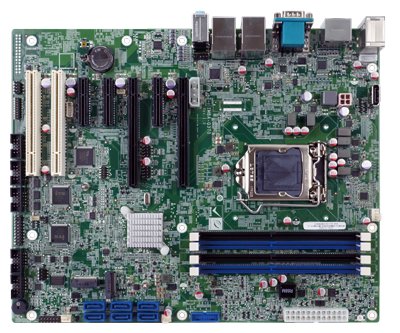

| ATX motherboard supports 14nm LGA1151 Intel® 8th Generation Core™ i7/i5/i3, Celeron® and Pemtium® processor, DDR4, triple independent displays, dual GbE LAN, M.2, USB 3.1, SATA 6Gb/s, HD Audio and RoHS
|
| Catalog / Customs Tariff (HS) code: 84733020 |
Features |
● LGA1151 Intel® 8th Generation Core™ i7/i5/i3, Pentium® or Celeron® processor
● Dual-channel DDR4 2666MHz
● Support VGA, HDMI & DP++
● Support M.2 A key for WLAN expansion, M key for storage
● IEI One Key Recovery solution allows you to create rapid OS backup and recover |
Specifications |
| Spec Item |
Description |
| Dimensions |
| Dimensions |
244mm x 305mm |
| Display |
| Display Output |
Triple independent display
1 x VGA (up to 1920 x 1080@60Hz)
1 x DP++ (up to 4096 x 2304@60Hz)
1 x HDMI (up to 4096 x 2304@30Hz)
1 x internal Displayport (up to 4096 x 2304@60Hz) |
| Environment |
| Humidity |
5% ~ 95%, non-condensing |
| Operating Temperature |
-20ºC ~ 60ºC |
| Storage Temperature |
-30°C ~ 70°C |
| Expansion Slots |
| Expansion Slots |
2 x PCIe x8
3 x PCIe x4
2 x PCI
1 x M.2 M Key (2280, PCIe x2 only)
1 x M.2 A key (2230, PCIe x1 & USB 2.0) |
| I/O Interface |
| Audio |
Realtek ALC662 HD Audio Codec supports 5.1 channel
3 x Audio jacks (line-out, line-in, mic-in) on rear IO
1 x Front Audio (2x5 pin) |
| Digital I/O |
8-bit digital I/O (2x5 pin) |
| Ethernet |
LAN1 : Intel® I219LM PCIe controller with AMT 11.0 support
LAN2: Intel® I211AT PCIe controller |
| I/O Interface |
| I/O Interface |
1 x Front panel(2x7 pin, power LED, HDD LED, speaker, power button, reset button) |
| 1 x I²C(1x4 pin) |
| 3 x Internal RS-232(2x5 pin, P=2.54) |
| 2 x Internal RS-232/422/485(2x5 pin, P=2.54) |
| 4 x Internal USB 2.0(2x4 pin, P=2.0) |
| 2 x Internal USB 3.0(2x10 pin, P=2.0) |
| 1 x KB/MS(1x6 pin) |
| 1 x KB/MS |
| 2 x LAN LED(1x2 pin) |
| 1 x RS-232 |
| 6 x SATA 6Gb/s(RAID 0/1/5/10 supported) |
| 1 x SMBus(1x4 pin) |
| 4 x USB 3.0 |
| 2 x USB2.0 |
| Power |
| Power consumption |
3.3V@1.65A, 5V@3.4A, 12V@8.58A, 5VSV@3.4A (Intel® Core® i7-8700K up to 4.60 GHz CPU with 32GB 2600MHz DDR4 memory) |
| Power Supply |
ATX/AT Power Supply |
| System |
| Chipset |
Intel® Q370 |
| CPU |
LGA1151 socket supports 8th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor |
| Memory Max. |
Four 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB |
| Weight |
| Weight |
GW:1200g, NW: 700g |
|
Ordering Information |
| Item No. |
Description |
| IMBA-Q370-R10 |
ATX motherboard supports 14nm LGA1151 Intel® 8th Generation Core™ i7/i5/i3, Celeron® and Pemtium® processor, DDR4, triple independent displays, dual GbE LAN, M.2, USB 3.1, SATA 6Gb/s, HD Audio and RoHS |
|
| 1 x IMBA-H110 single board computer |
2 x SATA cable |
| 1 x I/O shielding |
1 x QIG |
|
|
|
|
|
|
|
|
