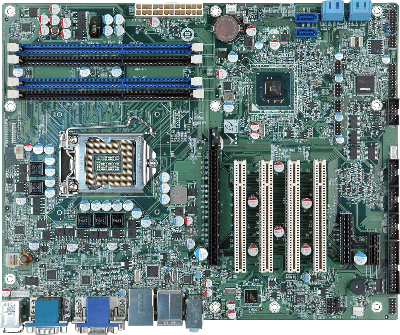

IMBA-Q670

ATX motherboard supports 32nm LGA1155 Intel® Core™ i7/i5/i3 CPU per Intel® Q67, DDR3, VGA/DVI/HDMI, dual Intel PCIe GbE, two USB 3.0, two SATA 6Gb/s, audio and RoHS

IMBA-Q670-IO

Datasheet / Customs Tariff (HS) code: 84733020




Features

1. LGA1155 Intel® Core™ i7/i5/i3 processor supported
2. Up to 32 GB 1333 MHz dual-channel DDR3 SDRAM
3. Intel® PCIe GbE with Intel® AMT 7.0 supported
4. USB 3.0 and SATA 6Gb/s supported
5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specification


IMBA-Q670

CPU LGA1155 socket supports Intel® Core™ i7/i5/i3 Quad/ Dual core processor
System Chipset Intel® Q67
BIOS
UEFI BIOS
System Memory
Four 240-pin 1333/1066MHz dual-channel DDR3 SDRAM unbuffered DIMM supported (system max. 32GB)
Ethernet Intel® 82583V PCIe controller
Intel® 82579 PHY with Intel® AMT 7.0 supported
I/O Interface 5 x RS-232
1 x RS-422/485
1 x LPT
4 x SATA 3Gb/s with RAID 0/1/5/10 support
1 x PS/2 KB/MS
2 x SATA 6Gb/s with RAID 0/1/5/10 support
2 x USB 3.0 by ASMedia Asm1042
10 x USB 2.0 (2 by Rear IO, 8 by pin header)
Digital I/O 8-bit Digital I/O (4-bit input, 4-bit output)
Super I/O Fintek F81866
TPM 1 x 10-pin pin header
SMBus 1 x 4 pin wafer
Audio Realtek ALC888 HD Audio codec (Line-in, Line-out, Mic)
Front Audio: 2 x 5-pin pin header
Display Interfaces VGA integrated in the Intel® Q67
HDMI integrated in the Intel® Q67
DVI-D integrated in the Intel® Q67
Expansion 1 x PCIe x16 slot
1 x PCIe x4 slot (with x1 signal)
1 x PCIe x4 slot
4 x PCI slots
Watchdog Timer Software Programmable support 1~255 sec. system reset
Power Supply ATX power supply
Fan 1 x 4-pin CPU Fan connector
2 x 3-pin system Fan connector
Power Consumption 3.3V@1.65A, 5V@6.31A , 12V@0.18A, Vcore@7.88A, 5VSb@0.15
Make video available onthe- go for video capable devices and smart phone Video To Go (Intel® Core™ i5-2400 3.10GHz CPU with four 4 GB 1333MHz DDR3 memory) Video Source MPEG 2 VC1 H.264 AVC Store or share home video content with family and friends by burning it into DVD Burn To Disc RS-232 VGA Dual GbE KB/MS HDMI DVI-D 2 x USB 2.0
Graphic Support for DX10.1 and OpenGL3.0
Full MPEG2, VC1, AVC Decode
Temperature Operation: -10°C ~ 60°C
Humidity Operating: 5% ~ 95% non-condensing
Dimensions 305 (L) mm x 244 (W) mm
Weight GW:1200g / NW: 700g
Ordering Information
Part No. Description
IMBA-Q670-R30 ATX motherboard supports 32nm LGA1155 Intel® Core™ i7/i5/i3 CPU per Intel® Q67, DDR3, VGA/DVI/HDMI, dual Intel® PCIe GbE, two USB 3.0, two SATA 6Gb/s, audio and RoHS
19800-003100-300-RS Dual ports USB cable with bracket
32102-000100-100-RS SATA power cable
32205-003800-100-RS RS-422/485 cable, 200mm
19800-000049-RS LPT cable
19800-000051-RS RS-232 cable, 230mm
TPM-IN01-R11 20-pin Infineon TPM module, software management tool, firmware V3.17
CPU-DT-i5-2500T Intel® Core™ i5-2500T processor, LGA1155, quad core 2.3GHz, 6M cache, 45W, compatible with CF-1156C-RS CPU cooler
CPU-DT-i5-2390T Intel® Core™ i5-2390T processor, LGA1155, dual core 2.7GHz, 3M cache, 35W, AMT, compatible with CF-1156C-RS CPU cooler
CPU-DT-i3-2120T Intel® Core™ i3-2120T processor, LGA1155, dual core 2.6GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler
CPU-DT-P-G630T Intel® Pentium® G630T processor, LGA1155, dual core 2.3GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler
CPU-DT-C-G440 Intel® Celeron® G440 processor, LGA1155, single core 1.6GHz, 1M cache, 35W, compatible with CF-1156C-RS CPU cooler
CF-1156A-RS-R11 High-performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W
CF-1156C-RS LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W
CF-1156D-RS LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W
CF-1156E-RS-R11 High-performance LGA1155/LGA1156 cooler kit, 95W
Packing List:
1 * IMBA-Q670 single board computer 1 * I/O shielding (P/N:45014-0028C0-01-RS)
4 * SATA cable (P/N:32000-062800-RS) 1 * Mini jumper pack
1 * Utility CD 1 * QIG
1 * One Key Recovery CD
