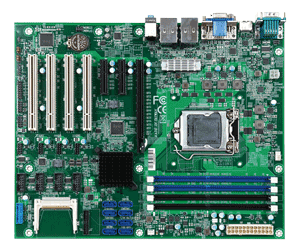

RUBY-D718VG2AR

Leading Desktop Intel® 6th Gen Core™ processor ATX with DDR4 SDRAM, Triple Displays, Two GbE LAN ports, Six COM Ports

13.	RUBY-D718VG2AR

Catalog

Features

  1. Intel® 6th generation Core™ processors
  2. Supports four DDR4 2133/1866 Long- DIMM up to 64GB
  3. Supports Triple display by VGA, DVI-D, and HDMI
  4. Supports six SATA III ports
  5. Supports six Com ports
  6. Supports one PCIe x16, two PCIe x4, and four PCI

Specifications

Processor Intel® 6th Gen Core™ Processors in LGA1151 package
Chipset Intel® Q170
BIOS AMI uFEI BIOS (SPI ROM)
Memory Four DDR4 2133/1866 Long-DIMM up to 64GB non-ECC memory
Storage Devices -6x SATA III ports (Q170 PCH)
-8x SATA III ports (C236 PCH)
Watchdog Timer Programmable by embedded controller
Hardware Monitoring System monitor voltage, fan speed, and temperature
Expansion Interface - 1x PCIe x16 Gen3
- 2x PCIe x4 Gen3
- 4x PCI
Super I/O(Embedded Controller) N/A
Audio - Realtek ALC886 HDAcodec
- Audio jack on rear I/O with Line-out/ Line-in/ Mic-in
Ethernet - Intel® I219LM and Intel® I210AT Ethernet controller
- 2x RJ45 connectors on rear I/O
Serial Port - 1x RS-232/422/485 on rear I/O
- 1x RS-232 on rear I/O
- 4x RS-232 on pin header
USB - 4x USB 3.0 ports on rear I/O
- 2x USB 3.0 ports on pin header
- 8x USB 2.0 ports on pin header
Keynoard & Mouse PS/2 Keyboard & Mouse Pin Header
GPIO 8-bit configurable controlled by embedded controller
Others Option TPM module with LPC pin header
Graphic Controller Intel® Gen 9 graphic engine supports DirectX 12, OpenGL 4.4
Display Interface - DVI-D: one DVI-D port on rear I/O, up to 1920x1200@60Hz
- HDMI: one HDMI port on rear I/O, up to 4096x2160 @ 24Hz
- VGA: one VGA port on rear I/O, up to 1920x1200 @ 60Hz
Dimension - 304.8(L) x 243.8(W);12"(L) x 9.6"(W)
Power Supply 24 Pin ATX power input
Environment - Operation temperature: 0°C~60°C
- Storage temperature: -20°C~80°C
- Relative humidity: 5~95%, non-condensing
MTBF Over 120,000 hours at 40°C

Ordering Information

(R).RUBY-D718VG2AR
ATX.IMB.LGA1151.CPU.Q170.DDR4/VGA/HDMI/DVI/Dual GbE/COM/Audio/USB

Packing List

  1. One Installation DVD
  2. One SATA III cable
  3. One I/O shield
