RUBY-D715VG2AR |

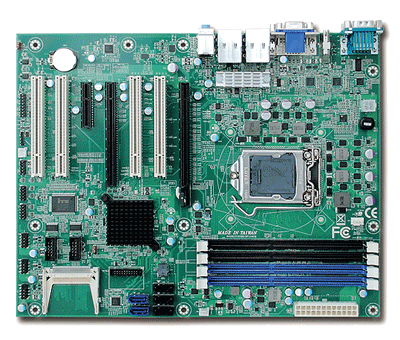

RUBY-D715VG2AR is based on Intel® C216 chipset and workstation sku like Core™ i3 and Xeon® E3-1200 series processors. Built with flexible PCI express expansion and bifurcation feature, it can support two I/O interface cards and can also suitable for Medical, Industrial Automation, and Digital Signage applications. |
|
Datasheet |
|
| |
| |
Features |
- Intel® Core™ i3 and Xeon® E3-1200 series processors support
- Four Long-DIMMs support dual channel DDR3 ECC and non-ECC SDRAM up to 32 GB
- Dual display by VGA/DVI-D/HDMI
- Rear I/O, USB 2.0/3.0, dual Gigabit Ethernet, COM ports and SATA II/III ports support IntelIntel® RAID 0,1,5,10
- Two PCIe x16 slots (Gen 3, x16 signal or 2 x8 signal), one PCIe x4 (Gen 2), and four PCI slots
- One CFEX socket (supports CFEX card)
- IntelIntel® Active Management Technology 8.0
|
|
Specifications |
| Form Factor |
ATX |
| CPU |
Intel® Core i3/Xeon® E3 series |
| Chipset |
Intel® C216 PCH |
| BIOS |
Phoenix BIOS |
| Memory |
4x DDR3 DIMM up to 32GB |
| Expansion |
2* PCIe x16 (3.0) works as 16/na or 8/8
1* PCIe x1 (2.0)
4* PCI 32Bit 5V |
| Display |
VGA/DVI-D/HDMI support triple display |
| Audio |
Realtek ALC886-GR HD Audio codec |
| LAN |
2x GbE |
| Serial Port |
5x RS232
1x RS232/422/485 |
| USB |
4x USB 3.0
6x USB 2.0 |
| Storage Devices |
3x SATA II
2x SATA III
1x CFEX |
| GPIO |
8-bit |
| Others |
PS/2 KB&MS |
| Dimension |
304.8 x 243.8mm |
|
Ordering Information |
|
|
Packing List |
- One SATA II cable
- One SATA III cable (Black)
- One Installation CD
- One I/O shield
- DVI-D + VGA cable with bracket
- PICMG SBC Handling and Installation Notice
- Installation CD
|
|
|
|
|
|
|
|
|
|
|
