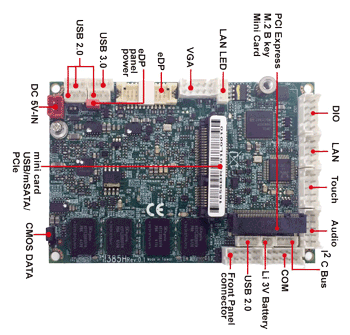

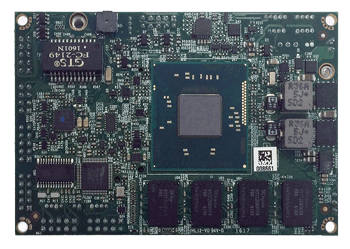

1I385H |
|
|
Features:
| • |
Embedded Intel® Bay Trail-I E3825 CPU / chipset |
| • |
On Board 2G DDR3L, VGA, eDP, Touch Screen, Audio |
| • |
1 x Intel GbE LAN, 1 x USB 3.0, 2 x USB 2.0, COM |
| • |
1 x Mini PCIe for PCIe / USB / mSATA. |
| |
M.2 B Key, type 2242 |
|
|
Specification :
| MODEL |
1I385H |
| CPU Type |
Bay Trail-I E3825 1.33GHz (Dual core processor) |
| MB Chipset |
Intel Bay Trail-I E3825 chipset |
| BIOS |
Insyde UEFI BIOS |
| Graphics |
Intel's 7th generation (Gen 7) graphics and media encode / decode engine,
Supports DX*11, OpenGL 3.0 (OGL 3.0), OpenCL 1.2 (OCL 1.2), OpenGLES 2.0
Display Ports: VGA / eDP |
| System Memory |
On Board 1066 MHz 2Gb DDR3L |
| eDP |
eDP - pin header, support 2 lanes resolution up
max to 1920x1080. |
| Touch Screen |
COM interface Touch screen controller |
| Storage |
2 x SATA ports 2.0 Data transfer rates up to 3.0 Gb/s (300 MB/s)
1 x mini card socket for mSATA, 1 x M.2 mini card socket for SATA SSD |
| Audio |
High Definition Audio Specification, Support Line-out / Mic-in |
| LAN |
1 x Intel LAN 10 / 100 / 1000 Mbps |
| USB |
1 x USB 3.0 / 2.0
2 x USB 2.0 |
| DIO & WDT |
Hardware digital Input & Output, 4 x DI / 4 x DO
Hardware Watch Dog Timer, 0~255 sec programmable |
| IO function |
1 x RS232 |
| Expansion Interface |
1 x Full size Mini card for PCIe / USB / mSATA
1 x M.2 (B Key for SSD, type 2242) |
| Power |
DC IN+5V |
| Dimension |
Femto-ITX 84 x 55 mm |
| Operation Temperature |
-20°C ~ 70°C |
| Operation Humidity |
5 ~ 95%, non-condensing |
| Expansion |
GPS, IEEE1394, 3G / 4G, Bluetooth, WI-FI, I/O |
|
|
|
|
|
|
|
|
|
