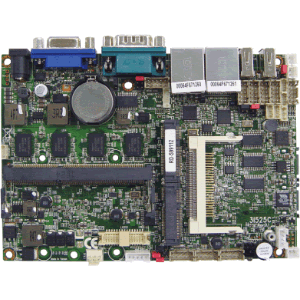

Features:
3.5" inch, Intel Atom D525 processor, 6 COM , 2 SATA , NAND flash memory , HD Audio , LVDS , Touch Screen , SIM Card Socket, 6W stereo audio amplifier
Specifications:
. CPU type:
Intel Atom D525 1.8 GHz ( Dual core processor )
. MB Chipset:
Intel Atom D525 + ICH8M (82801 HBM)
. BIOS:
Award BIOS
. Graphics:
Intel Luna Pier Refresh Pineview-D Integrated Graphics Engine
. LVDS:
Data format of 18 bits
. System Memory:
1 x DDR3 SO-DIMM socket (max. 4GB) or
On board DDR3 SDRAM 1GB and 1 x DDR3 SO-DIMM (max. 2GB)
. NAND flash memory:
CF Card Type 2 socket for ATA interface
On board SSD 2 / 4 / 8 GBytes (option)
. SATA:
2 x SATA ports
. Audio:
Intel HD Audio Specification Rev. 1.0 Compliant.
Support Line-out / Mic-in / Line-in
. LAN:
2 x Realtek RTL8111DL or
2 x Intel 82583V / 82574L 10 / 100 / 1000 Mbps
. IO function:
5 x RS232 or 485 (option) + 1 x RS422 / 485 or 232 (option)
Support PS/2 keyboard & mouse
. USB:
7 x USB 2.0 (2 external + 5 internal)
. Audio Amplifier (option):
Two channels Audio Amplifier
6-W/CH Class-D operation into an 8-Ω Load from a 12-V Supply
. Touch Screen:
USB interface Touch screen controller
Support 4- , 5- , 8- wire Analog Resistive Touch screen
USB 1.1 full speed sample rate maximum of 300 point / sec.
Resolution : 2048 x 2048
. DIO & WDT:
Hardware digital Input & Output, 8 x DI / 8 x DO
Hardware Watch Dog Timer, 0~255 sec programmable
. Expansion interface:
1 x Mini PCI socket, 3G SIM card socket
2 x PCIe mini card for PCIe & USB interface
. Power:
On board DC +12V ± 5% convert to +3.3V / +5V / +12V for system or
Wide range DC-IN from +6V to +35V ( option )
. Dimension:
145 x 102 mm (3.5 inch)
. Operation Temp.:
0 ~ 60°C
. Operation Humidity:
5~95% @ 60 °C, non-condensing
Ordering Information
. 3I525C-RH13-00 : 2 Realtek GbE, 1GB DDR3 on board &
DDR3 SO-DIMM socket, LVDS, DC-IN +12V
. 3I525C-R000-00 : 2 Realtek GbE, DDR3 SO-DIMM socket,
LVDS, DC-IN +12V
. 3I525C-U000-00 : 2 Intel GbE, DDR3 SO-DIMM socket,
LVDS, DC-IN +12V
Testing environment:
Model name :
3I525C-RH13-00
CPU :
Intel Atom D525 1.8 GHz
Chipset :
Intel Atom D525 + ICH8M
OS :
WIN XP
Testing Program :
3D Mark 2001 |
