IMB-H610A

microATX motherboard supports LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU with Intel® H61, DDR3, VGA/DVI-D, dual Realtek PCIe GbE, USB 2.0, 6 x COM, SATA 3Gb/s, HD Audio

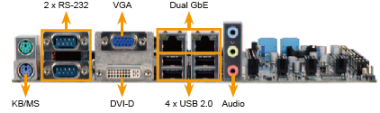

G410I/O

Features:

1. LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor supported
2. Up to 16 GB 1333 MHz dual-channel DDR3 SDRAM
3. Intel® HD Graphics technology integrates high-performance graphics and media processing
4. TPM V1.2 hardware security provided by the TPM module
5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Download

Overview

Specification
CPU LGA1155 socket supports Intel® Core™ i7/i5/i3 quad/Dual, Pentium® dual, Celeron® dual/single core processor
System Chipset Intel® H61
BIOS UEFI BIOS
System Memory Two 240-pin 1333/1066 MHz dual-channel unbuffered DDR3 SDRAM DIMMs supported (system max. 16GB)
Ethernet Dual Realtek RTL8111E PCIe GbE controller, LAN1 with ASF 2.0 support
I/O Interface 5 x RS-232
1 x RS-422/485
4 x SATA 3Gb/s without RAID & AHCI
1 x PS/2 KB/MS
10 x USB 2.0 (4 by rear IO, 6 by pin header)
Digital I/O 8-bit programmable I/O
Super I/O Fintek F81866
TPM 1 x 20-pin header
SMBus 1 x 4-pin wafer
Audio Realtek ALC662 HD Audio codec (Line-in, Line-out, Mic)
Display Interfaces Dual display supported
1 x VGA
1 x DVI-D
Expansion 1 x PCIe x16 slot
3 x PCIe x1 slots
Watchdog Timer Software programmable support 1~255 sec system reset
Power Supply ATX / AT power supply
Fan 1 x 4-pin CPU fan connectorr
2 x 3-pin system fan connector
Power Consumption 3.3V@1.75A, 5V@6.61A , Vcore@3.68A, 12V@0.09A, 5sb@0.12A
(Intel® 2.60GHz CPU with four 1333MHz 4GB DDR3 memory)
Graphic Intel® HD Graphics 2000/3000 (based on CPU type)
Support for DX10.1 and OpenGL 3.0
Full MPEG2, VC1, AVC Decode
Temperature -10°C ~ 60°C
Humidity 5% ~95%, non-condensing
Dimensions 244mm x 244mm
Weight GW: 1200g / NW: 680g
Front Panel 1 x Front panel connector (power LED, HDD LED, speaker, power button, reset button)
I2C 1 x 4-pin wafer
Front Audio 1 x 10-pin header



Ordering Information:

Part No. Description
IMB-H610A-R10 microATX motherboard supports LGA1155 Intel® Core™ i7/i5/i3/ Pentium®/Celeron® CPU with Intel® H61, DDR3, VGA/DVI-D, dual Realtek PCIe GbE, USB 2.0, 6 COM, SATA 3Gb/s, HD Audio and RoHS
19800-003100-200-RS Dual-port USB cable with bracket
32205-003800-100-RS RS-422/485 cable, 200mm
32102-000100-200-RS SATA power cable
32205-001203-100-RS Quad-port RS-232 cable with bracket, 400/400/400/400mm
TPM-IN01-R11 20-pin Infineon TPM module, software management tool, firmware V3.17
CPU-DT-i5-2500T Intel® Core™ i5-2500T processor, LGA1155, quad core 2.3GHz, 6M cache, 45W, compatible with CF-1156C-RS CPU cooler
CPU-DT-i5-2390T Intel® Core™ i5-2390T processor, LGA1155, dual core 2.7GHz, 3M cache, 35W, AMT, compatible with CF-1156C-RS CPU cooler
CPU-DT-i3-2100T Intel® Core™ i3-2100T processor, LGA1155, dual core 2.5GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler
CPU-DT-P-G620T Intel® Pentium® G620T processor, LGA1155, dual core 2.2GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler
CPU-DT-C-G440 Intel® Celeron® G440 processor, LGA1155, single core 1.6GHz, 1M cache, 35W, compatible with CF-1156C-RS CPU cooler
CF-1156A-RS High-performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W
CF-1156B-RS High-performance LGA1155/LGA1156 cooler kit, 95W
CF-1156C-RS LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W
CF-1156D-RS LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W

Packing List:

1 * IMB-H610 single board computer 4 * SATA cable (P/N:32801-000703-200-RS)
1 * I/O Shielding (P/N:45014-0008C0-00-RS) 1 * Mini jumper pack
1 * Utility CD * QIG
1 * One Key Recovery CD
