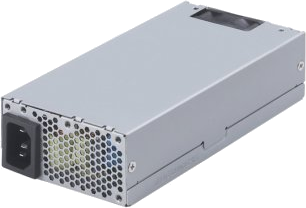

FSP180-50LE / FSP220-60LE

Safety
CE TUV CB UL CSA CCC FCC
Feature:
  • Low Ripple & Noise
  • Output over voltage protection
  • Short circuit protection on all outputs
  • Resettable power shut down
  • 100% burn-in under high ambient temperature(50℃)
  • Vacuum-impregnated transformer
  • MTBF:100K hours at 25℃
  • 100% Hi-pot tested
  • Line input fuse protection
80plus

Dimension : 150 x 81.5 x 40.5 mm

Specifications:
Datasheet: Download cable drawing
Input Specifications
• Input voltage:
90 - 264 V
•˙Input Frequency: 47Hz - 63Hz.
 Input current:
4.0 Amps maximum/115 Vrms,60 Hz;
2.0 Amps maximum/230 Vrms,50 Hz;
Protection Specifications
• Over-voltage protection:
+5V output: 5.7V min, 6.5V max;
+3.3V output: 3.7V min, 4.5V max;
+12V output 13.3V min, 15.6V max;
• Over-load protection: See specification for the detail

General Specifications
Hold-up time: 115V/60Hz 17mSec. Minimum@ Full Load
• Efficiency:
>80%
 MTBF 100,000 hours at Full load at 25℃
Power good signal 100ms to 500 ms
Environmental Specifications
• Operating conditions:
ambient temperature 0°C~+50°C
• Storage and
shipping conditions:
ambient temperature -20°C~+80°C
Relative humidity input / output 1800 VAC for 1 second,
input to frame ground 1800VAC for 1 second

Model Name Total Output Watt. Output Current
+3.3V +5V +12V1 +12V2 -12V +5VSB
Min Max Min Max Min Max Min Max Min Max Min Max

FSP180-50LE 180W 0.3 14 0.3 16 1.5 14 0 0.5 0 2
FSP220-60LE 220W 0.5 14 0.5 16 1 16 1 10 0 0.8 0 2.5
