Feature:
|
• High efficiency
• Low ripple & noise
• Resettable power shut down
• Internal 8 cm fan
• 100% burn-in test
• MTBF: 100K hours at 25°C |
Specifications:
Dimension : 100 x 125 x 64 m
Input Specifications |
• Voltage:
|
100~240VAC |
• Frequency: |
47Hz - 63Hz. |
|
|
|
Protection Specifications |
• Over-voltage protection: |
+3.3V, +5V, +12V1, +12V2 |
• Over-current protection: |
+3.3V, +5V, +12V1, +12V2 |
• Short circuit protection |
|
|
|
|
General Specifications |
• Efficiency: |
80% mini. |
|
|
|
Environmental Specifications |
• Operating conditions:
|
ambient temperature 0°C~+50°C |
• Storage and
shipping conditions: |
ambient temperature -20°C~+80°C |
• Dielectric withstand: |
input / output 1800 VAC for 1 second,
input to frame ground 1800VAC for 1 second |
|
|
|
Output:
Model |
Watts |
Output |
+3.3V |
+5V |
+12V1 |
+12V2 |
-12V |
+5Vsb |

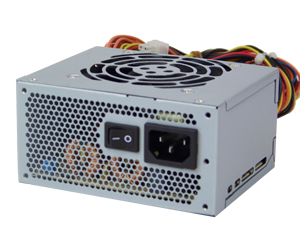

FSP300-60GHS(85) |
300W |
21A |
20A |
14A |
16A |
0.5A |
2.5A |
*Refer to spec sheet for output limitation.
*Detailed specifications and drawings provided upon request |
