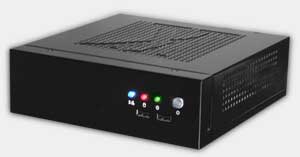

KM202

Mini ITX Chassis

KM202

Power view

DC-Jack



100DOF
Design feature:
  • enable a low cost fanless Mini-ITX solution possibilities
  • cable friendly , easy installation
  • High efficency > 90%
Construction:
  • All heavy-dutyCold rolled Electroplated steel, AWG GAUGE 18 standard, SGCC
  • ATX connector size power supply
EMI:

Effective EMI shielding protect system against min. 3 GHZ of radiation.

Drive Space:

1 x 2.5" HDD driver spaces

LED Signals:

HDD , Power,LAN/Bluetooth

Mainboard Supported:

Standard 170 x 170 mm Mini ITX mainboard

Mounting
  • Desktop ( standard acc. -- rubber feet )
  • Wall Mount kits( standard acc.- WMK190)
  • Vesa Mount Kits ( VM75100 ) ( optional acc. ) picture
    installation video
Weight:

Net 1.05 Kg / Gross 1.43 Kg (PS/MB excluded )

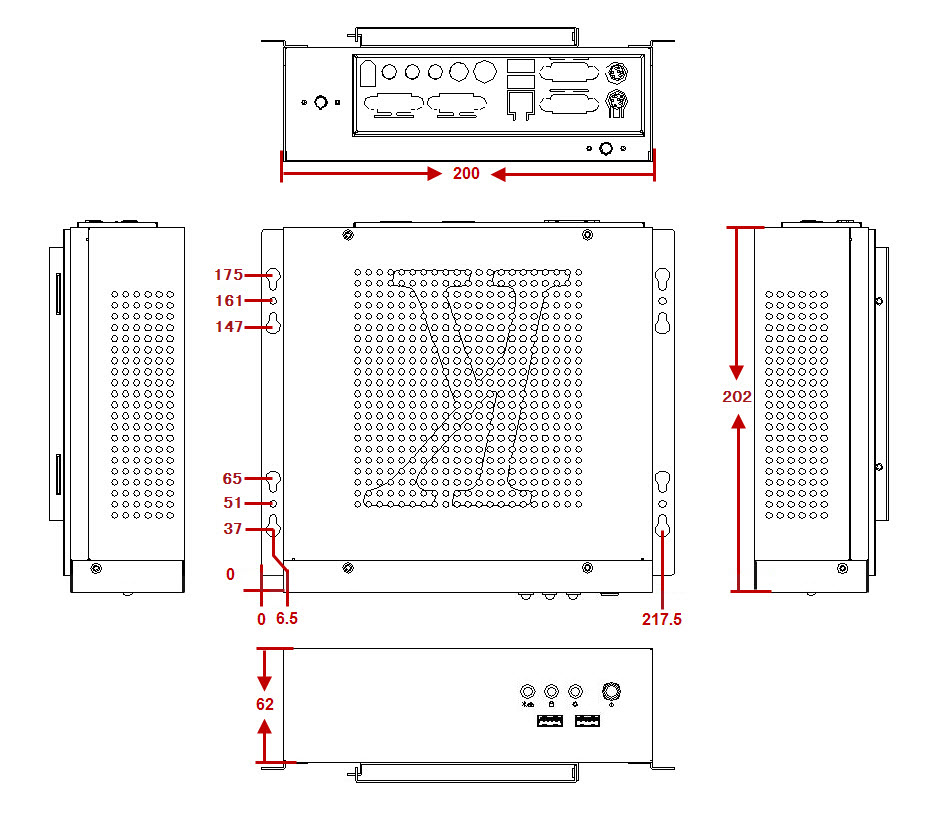

Dimensions:
  • W200 x D 202 x H 62 mm ( Chassis )
  • W285 x D 256 x H 95 mm ( inner boxPacking ) , i.e.0.244 cubic feet
  • W 500 x D 300 x H 280 mm (outside carton packing 5 pcs in one carton ) i.e.1.48 cubic feet
other accessories:
  • 2.5" notebook HDD ( optional acc. )
Power supply:

60W input AC -DC converter + 100 DOF DC-DC PICO PS, efficency > 90%
DC jack

Chassis Ordering Information:
  • Standard :
    • KM202 : Chassis+AC-DC+DC-DC
    • KM202P- : Chassis+AC-DC
  • VM75100
Download
  1. Datasheet
  2. Mechanic Drawing
  3. Vesa mount recommend installation notice
