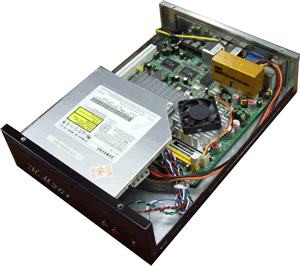

KM261

Mini ITX Chassis

KM261

Power view

DC-Jack



100DOF
Design feature:
  • enable a low cost fanless Mini-ITX solution possibilities
  • cable friendly, easy installation
  • High efficency > 90%
Construction:
  • All heavy-dutyCold rolled Electroplated steel, AWG GAUGE 18 standard, SGCC
  • ATX connector size power supply
EMI:

Effective EMI shielding protect system against min. 3 GHZ of radiation.

Drive Space:
  • 1 x slim DVD
  • 2 x 2.5" HDD driver spaces
LED Signals:

HDD , Power

Mainboard Supported:

Standard 170 x 170 mm Mini ITX mainboard

Mounting
  • Desktop ( standard acc. -- rubber feet )
  • Wall Mount kits( standard acc.- WMK261)
  • Vesa Mount Kits ( VM75100 ) ( optional acc. )picture , installation Video

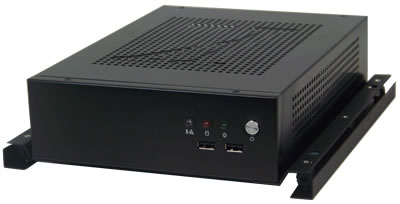

  • Anti-shock / Vibration kits ( AVK261 ), picture, demo
Weight:

Net 1.3 Kg / Gross 1.72 Kg (PS/MB excluded )

Dimensions:
  • W192 x D 261 x H 62 mm ( Chassis )
  • W 315 x D 286 x H 95 mm ( inner boxPacking ) , i.e.0.3 cubic feet
  • W 500 X D 300 XH 310 mm (outside carton packing 5 pcs in one carton ) i.e.1.64 cubic feet
other accessories:
  • Slim DVD R / W

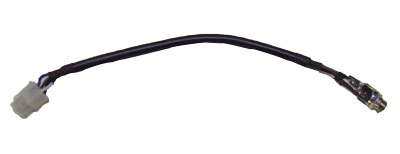

  • Scrlc-01 : Screw lockable cable
  • SCRLC-03: Hexagon Head, screw lockable cable
  • P4PM4P-CBL: panel mount 4-pin connector power input cable
Power supply:
  • 60W input AC -DC converter + 100 DOF DC-DC PS, efficency > 90%
    DC jack
  • AD84LM: 84 Watts AC adapter( Lockable ) ( I3 / I5 / I7 CPU )with screw lockable power jack( Ø 5.5 / Ø 2.5 )
  • AD84M4PP24: 84 Watts 12V input 4 pin AC adapter , for IEI Kino Mini ITX Main board
Chassis Ordering Information:
  • Standard :
    • KM261 : Chassis+AC-DC+DC-DC
    • KM261P- : Chassis+AC-DC
  • VM75100
  • AVK261
Download
  1. Datasheet
  2. Mechanic Drawing
  3. Vesa Mount recommend installation notice
