Barebone / BTO System

407BBS

KR407

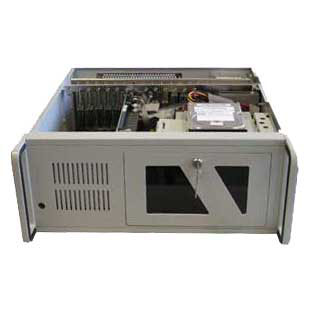

Chassis

KR4071

Features:

  • 3x5.25"+1x 3.5" Floppy / HDD
  • Support Full Height Lenght PCI devices
  • HDD cage Shock resistance design
  • one 12 cm cooling fan with air filter
  • 2 x USB in Front
Front Panel :

LEDs for power On/Off, HDD activity and keyboard lock

Power :
  • PS2 size PS, PS2 redundant PS, SFX PS, supported
  • 300 Watts PS as standard, 460/ 500Watts PS optional
Main Board:

standard 12" x 9.6" (305 x 244 mm) ATX mainboards

Option
Hot swappable HDD device: ST-3435TL, ST-2335TL, ST-1040ss,ST-1041SAS, ST-116TL,
Delivery

3 ~4 days

Ordering Information:
Order code

Description

Downlaod
R7I0040

CPU: Intel®i5-4590S 4C/4T 6 MB cache 3.3 GHz, Intel® H81 , 4GB DDR3 ( Max 16 GB ) , 2x GbE,Intel® HD Graphics Gen 7.5, VGA, DVI, 2x Com,2x USB 2.0, @x USB 3.0, @x USB2.0 Front, KB, MS, Audio, 1 x PCIe x16 , 2 x PCIe x1, 1 x PCIe Mini, 4 x PCI, 1 x 500GB HDD, One Key Recovery CD

datasheet

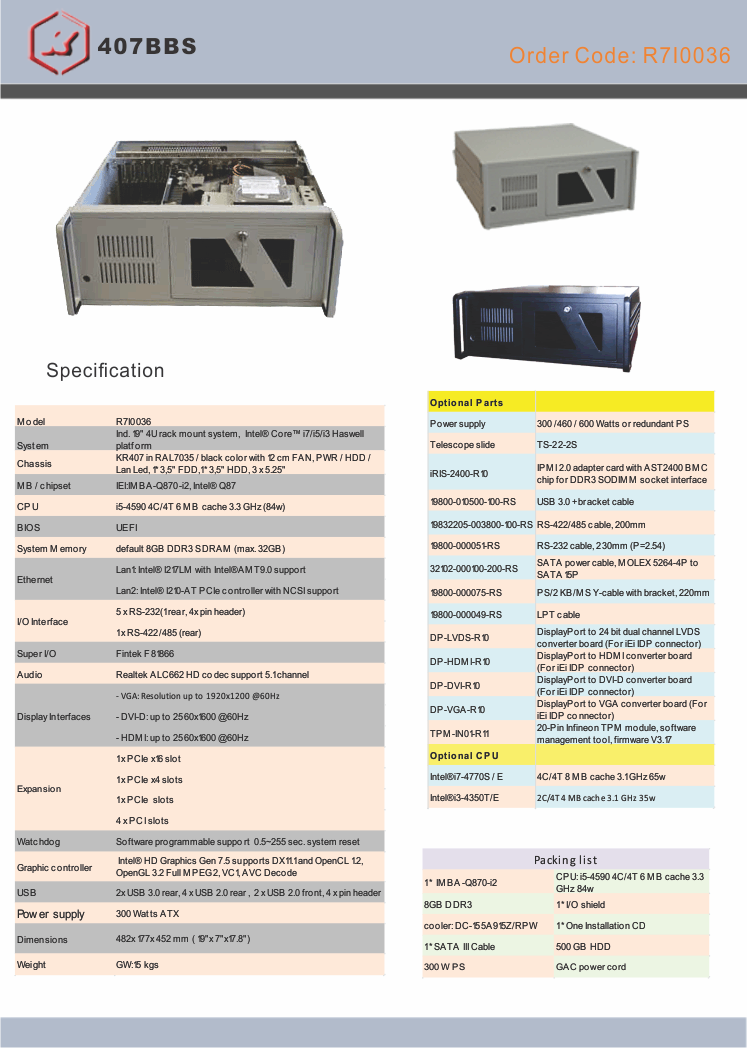

R7I0036

CPU: Intel®i5-4590S 4C/4T 6 MB cache 3.3 GHz, Intel® Q87 ,default 8 GB DDR3 ( Max 32 GB ),4 x USB2.0, 2 x USB 3.0,2x USB2.0 front, VGA, DVI, HDMI, Intel® HD Graphics Gen 7.5 , KB / MS, Audio, 2x GbE, 1 x PCIe x16 slot (Gen 3), 1 x PCIe x4 slot, 1 x PCIe x1 slot, 4 x PCI slots,1 x 500GB HDD, One Key Recovery CD

datasheet
R7P0010

CPU: Intel® i5-3470 4C/4T,Intel® Q77 PCH, 4GB DDR3 ( Max 32 GB) , VGA, DVI ( Intel® HD Graphics 4000),HDMI, TPM , 2x com, Audio, 2 x GbE, 4x USB 3.0 rear, 2x USB 2.0 Front, 4 x by pin head, 1 x 500GB HDD, 1x installation CD

datasheet
R7I0001

CPU: Intel® i5-3470 4C/4T, Intel® H61,4GB DDR3 ( Max 16 GB) , VGA, DVI ( Intel® HD Graphics ), TPM V1.2 , 2x com, PS2 Keyboard, Mouse, Audio, 2 x GbE, 4x USB 2.0 rear, 2x USB 2.0 Front, 1 x 500GB HDD, One Key Recovery CD

datasheet
