4450MA_BBS

4450MA_BBS
Chassis

IPC4450MA

Features:

3x5.25"+1x 3.5" Floppy / HDD Support, Full Height Lenght PCI devices, ANTI Shock / Vibration Card Clamps HDD cage Shock resistance design, Dust Protection via Air Filter in Front, Hot Swap 12cm PWM FAN in Front & 8 cm Hot swap PWM Fan in rear, anti-vibration device ,2 x USB in Front, Cooler

Front Panel :

Power / Reset Switch
HDD/ Power/ Lan  LED.
Two USB Ports

Power :
  1. PS2 size PS, PS2 redundant PS, SFX PS, supported
  2. 500 Watts PS as standard, 300 / 460 / 600 Watts PS optional
Main Board:

Full size 12" x13" supported

Option
  1. hot swappable HDD device: ST-3435TL, ST-2335TL, ST-1040ss,ST-1041SAS, ST-116TL
  2. CDFD combo
Delivery

3 ~4 days

Ordering Information:
Order Code
Description
Download

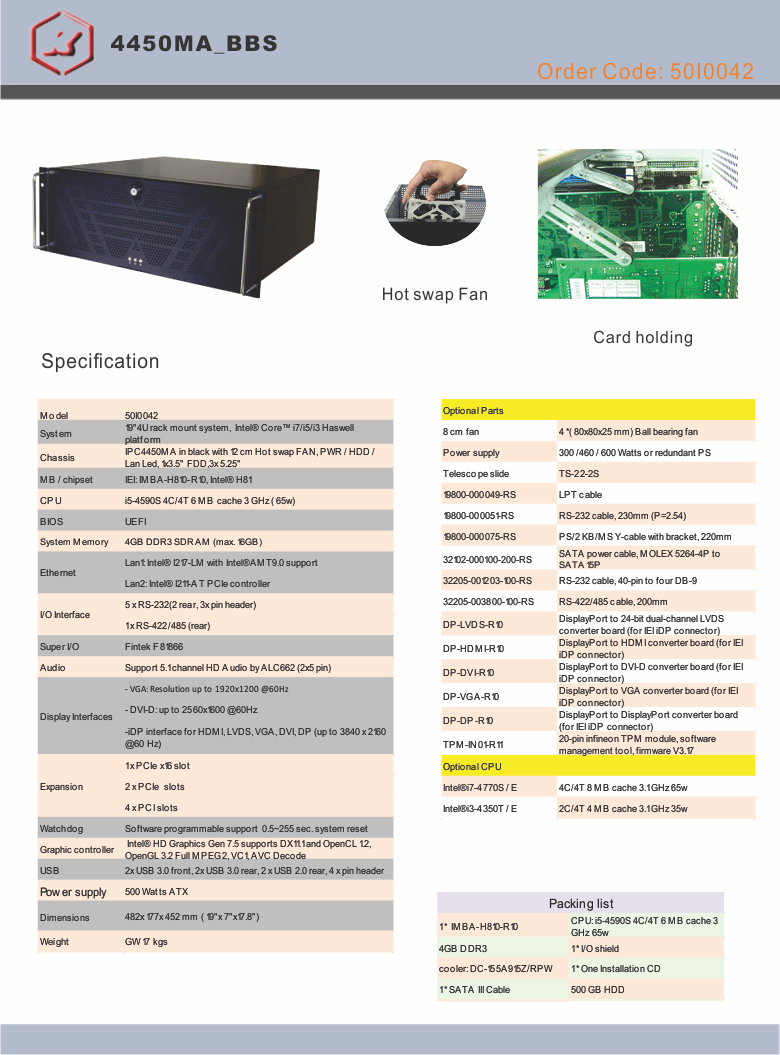

50I0042

CPU: Intel®i5-4590S 4C/4T 6 MB cache 3 GHz, Intel® H81 , 4GB DDR3 ( Max 16 GB ) , 2x GbE,Intel® HD Graphics Gen 7.5, VGA, DVI, 2x Com,2x USB 2.0, @x USB 3.0, @x USB2.0 Front, KB, MS, Audio, 1 x PCIe x16 , 2 x PCIe x1, 1 x PCIe Mini, 4 x PCI, 1 x 500GB HDD, One Key Recovery CD

datasheet

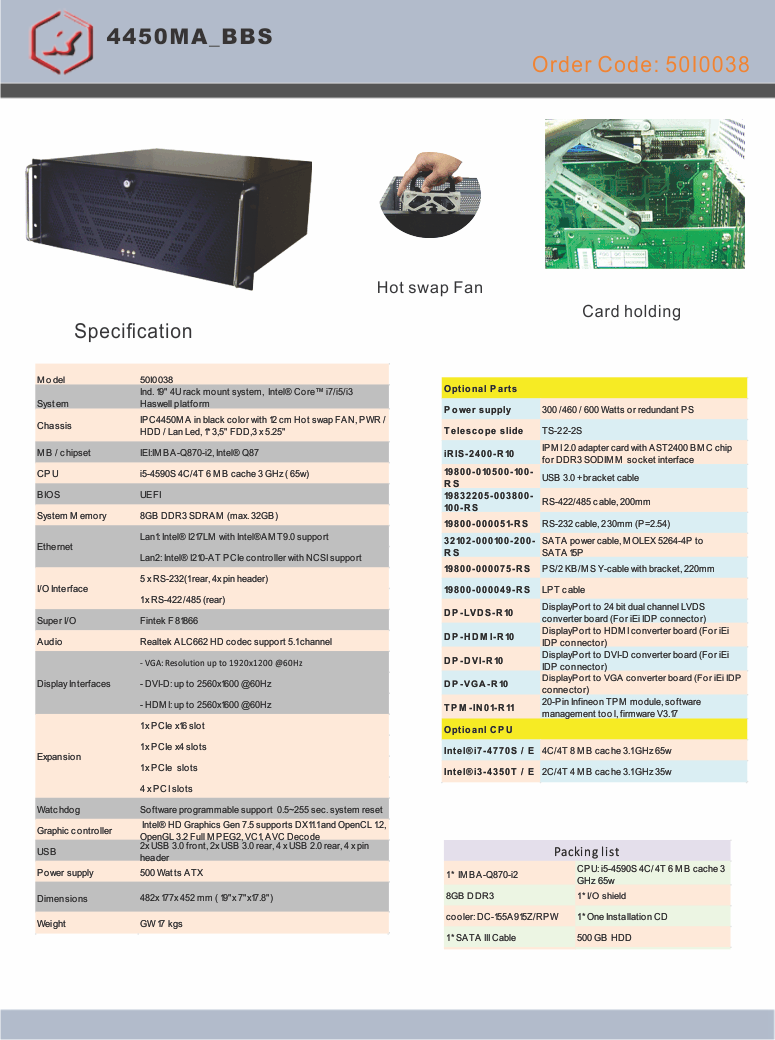

50I0038

CPU: Intel®i5-4590S 4C/4T 6 MB cache 3 GHz, Intel® Q87 , 8GB DDR3 ( Max 32 GB ),4 x USB2.0, 2 x USB 3.0,2x USB2.0 front, VGA, DVI, HDMI, Intel® HD Graphics Gen 7.5 , KB / MS, Audio, 2x GbE, 1 x PCIe x16 slot (Gen 3), 1 x PCIe x4 slot, 1 x PCIe x1 slot, 4 x PCI slots,1 x 500GB HDD, One Key Recovery CD

datasheet
50P0011

CPU: Intel® i5-3470 4C/4T,Intel® Q77 PCH, 4GB DDR3 ( Max 32 GB) , VGA, DVI ( Intel® HD Graphics 4000),HDMI, TPM , 2x com, Audio, 2 x GbE, 4x USB 3.0 rear, 2x USB 2.0 Front, 4 x by pin head, 1 x 500GB HDD, 1x installation CD

Datasheet
50I0002

CPU: Intel® i5-3470 4C/4T, Intel® H61, 4GB DDR3 ( Max 16 GB) , VGA, DVI ( Intel® HD Graphics ), TPM V1.2 , 2x com, PS2 Keyboard, Mouse, Audio, 2 x GbE, 4x USB 2.0 rear, 2x USB 2.0 Front, 1 x 500GB HDD, One Key Recovery CD

Datasheet
