Barebone_BTO System

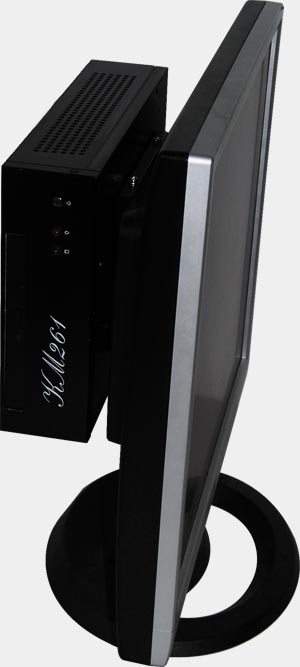

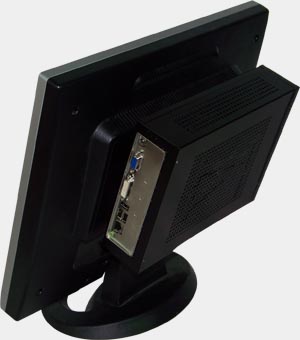

261BBS

KM261KM190

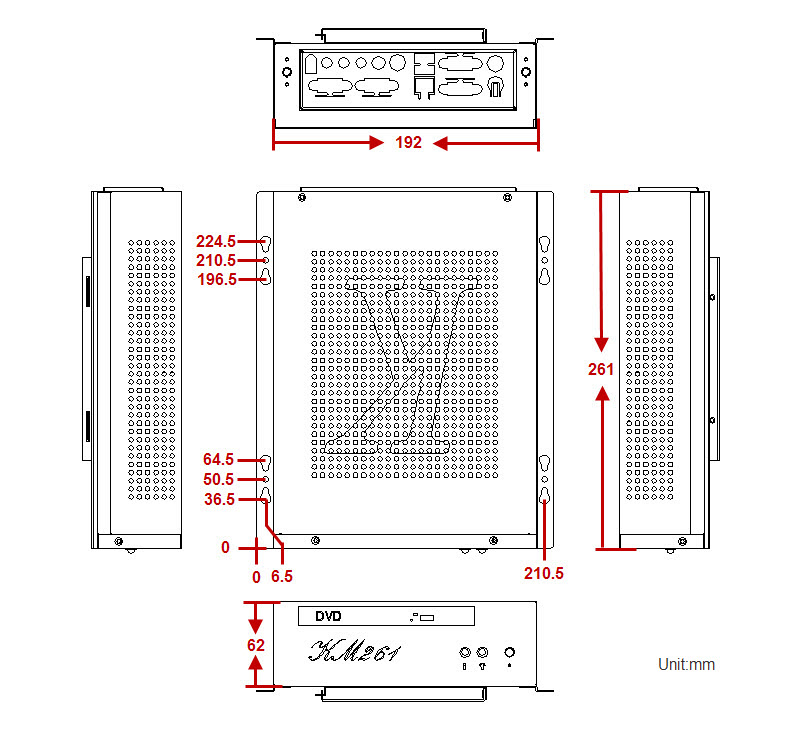

KM261-Mechanic Drawing

Design feature:
  • enable a low cost fanless Mini-ITX solution possibilities
  • cable friendly, easy installation
  • High efficency > 90%
Front Panel :

Power Switch
HDD/ Power LED.

Power :

External Power 60W

Storage:

1 x slim DVD
2 x 2.5" HDD

Dimension:

W 192 x D 261 x H 62 mm

Download
Vesa Mount recommend installation notice
Ordering Information:
KM261 With following Mainboards
Order Code. Description Download

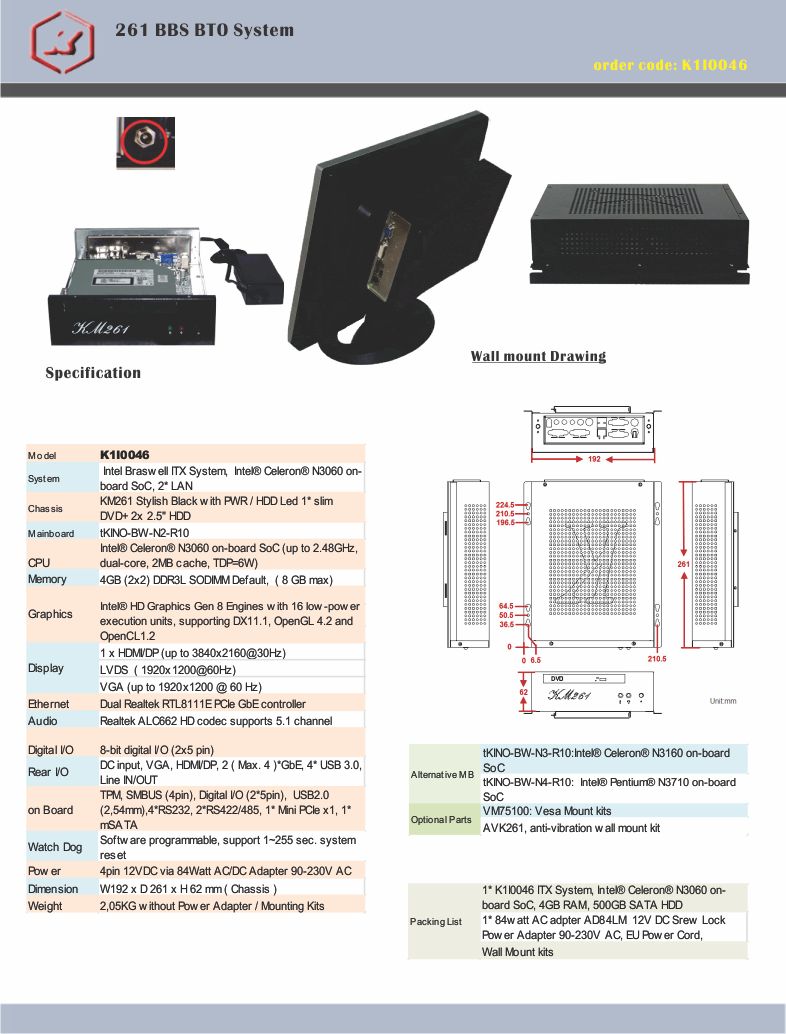

KUI0046
Intel Braswell platform, Intel® Celeron® N3060 on-board SoC (up to 2.48GHz, dual-core, 2MB cache, TDP=6W), DDR3L SO-DIMM default 4 GB Max. 8 GB Intel® HD Graphics Gen 8 Engines, Triple independent display, HDMI/DP , LVDS VGA, 2x GbE, 4x USB 3.0 rear, audio 500GB HDD,1x slim DVD, 12V DC input
datasheet
K1I0033
Intel® Celeron® N2807 on-board SoC 1.58GHz, dual-core,default 4GB( up to 8 GB) DDR3,VGA, HDMI , IPMI, TPM,2 x com ,2x USB 3.0 + 2x USB 2.0, 2x GbE,1 x slim DVD , 500 GB HDD
datasheet
K1I0032
Intel® Celeron® J1900 on-board SoC,2GHz, quad-core, default 4GB( up to 8 GB) DDR3,VGA, HDMI , IPMI, TPM,2 x com ,2x USB 3.0 + 2x USB 2.0, 2x GbE,1 x slim DVD , 500 GB HDD
datasheet
K1S0025
Intel® Atom™ Processor C2550,C2000 SOC, default 16GB( up to 64 GB) DDR3, 4xGbE, 1x VGA, IPMI, TPM,2x USB 3.0 + 2x USB 2.0,1 x slim DVD , 500 GB HDD
datasheet
K1S0023
i5-4570 T/E, Intel® H81, default 4GB ( upto 16 GB) DDR3 , 2x GbE, 1xVGA, 1xDVI-D, 2xUSB 2.0, 2x USB 3.0, 2x com, Audio, slim DVD, 500GB HDD
datasheet
