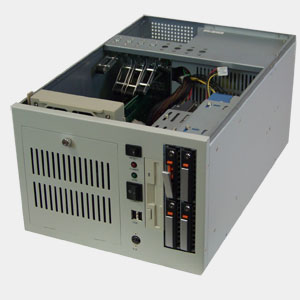

WMF04(V3.1) Wall Mount Chassis
Industrial Tower chassis
put in clip photo for enlarged image

Customs Tariff Code

84733080

Download
Datasheet[Format:PNG]
Mechanical drawing[Format:JPG]
Maunual [Format:PDF]
Slots:

4 slots full size Wall mount chassis

Main board:

Micro ATX format, 9.6 x 9.6 MB

Filter:

easy removable and washable filter

Ventilation:

1 x 120mm DC--DC High speed Ball bearing 4 Pin PWM(MTBF> 60,000 hours)., Hot swappable fan(2 Ball) in Front( see picture ) with air filter ; Hot swappable fan video demo

Drive Space:

1x5.25", 1 X3.5" & 1x3.5" HDD (Internal)

Card holding:

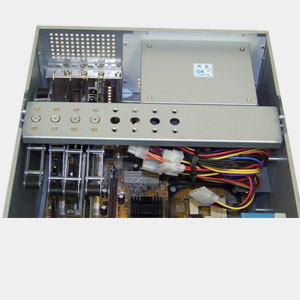

Standard built in 3 pcs anti-vibration add-in card holding Clamps (CHC4450) , Zero difference card holding Bar

Dimensions:

195(H) x 270(W) x 420 (D) mm

Weight:

Net weight: 7 kg / Gross weight: 9.5 kg

Carton & packing

5 ply export carton ( W420 x D581 x H355 mm, 3.06 CBF), PE Foam system packing

Power supply:
  1. SFX P/S :
  2. Standard PS 2 P/S( 150x86x140mm)300W / 460W / 500W PS2 size P/S
  3. PS2 size redundant Power supply : MRT-6320P , MRP-6420P, MRW-6420P
Construction:

All heavy-duty steel, AWG GAUGE 18 standard, SGCC

Double side Anti-Vibration holding Clamps, fix full range of add on card, Video Demo

Option:
1.  Standard built in ATX power switch, option AT power switch ( order product code SW-R-810-001 )
2.  SFX MPA04
3. CDFD-combo-V4
4. M14T
5. AVK428
6.anti-vibration add-in card holding clamp(CHC4450)
Accessories:

WMF-FT01(wall mount kits)

Order information
1.  WMF04
Micro ATX wall mount chassis
2.  MPA04
SFX Power supply Metal plate
3.  Power supply
Chose one from SFX, PS2 or mini redundant PS
4. AVK428
Anti-shock / Vibration Kits
5. CDFD-combo-V4 : Slim DVD & HDD, Floppy disk mounting Frame
6. M14T :  4 x 2.5" mobile rack
7. CHC4450: anti-vibration add-in card holding clamp
