Heros Series - IPC607

put in clip photo for enlarged image

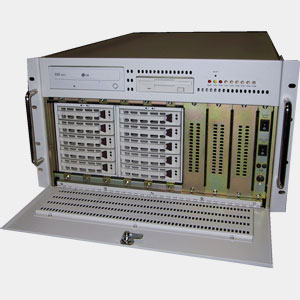

19" 6U 2 / 4 Way CPU Multi-function RackServer
With Flexible HDD Drivers design

Download Manual V1.41 for IPC 607

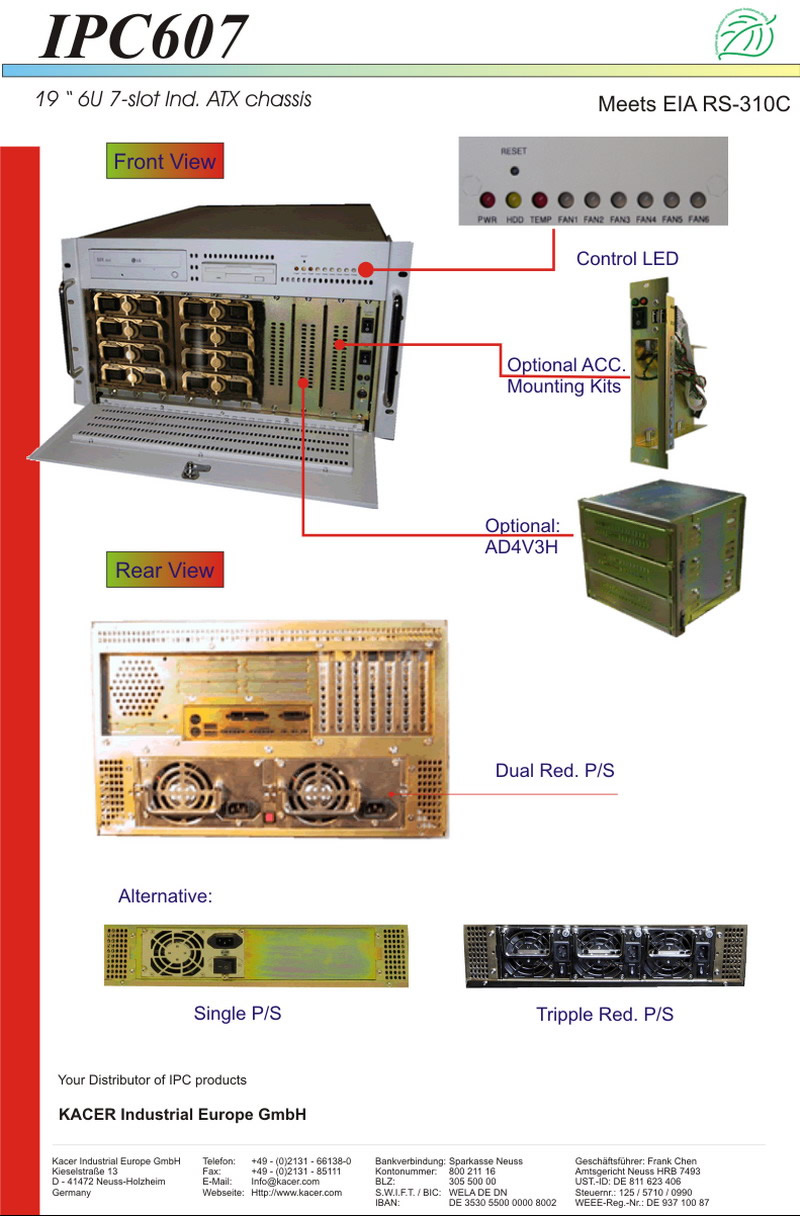

Datasheet: IPC607
Design feature:
  • Best design for thermal engineering and dynamics
  • Lockable Front door for High Security protection
Main Boards Supported:

Supports various types of ATX Motherboards from ATX, full sized Extended ATX( 12"*13") & 16"*13"

EMI:

Effective EMI shielding protect system against min. 2 GHZ of radiation.

Ventilation:

Six pieces Easy replacement 80mm DC--DC High speed Ball bearing fans(2 Ball)

Drive Space:
  • One 5.25" Drive and 3.5" drive reserved for CD Rom & Floppy
  • 9 pieces Flexible 5.25" HDD drivers spaces for different purpose HDD Backplane(SCA, Serial ATA or Parallel IDE)
LED Signals:

LED for HDD Access, fan , Temperature power status, picture

Ventilation Pathway

Air flow picture

Enviroment control board:

Fan, HDD acc. & Power, datasheet , picture

Weight:

Net 22Kg / Gross 25 Kg (PS/MB excluded )

Dimensions:
  • Case: W 482.6 x D 640 x H 267 mm
  • Packing: W 575x D 803x H429 mm
Optional accessories:
  1. dust filter
  2. Telescope slide TS-22-3S (Screws : 10 ø 32T), 3 section Telescope slide & Mounting Bracket MBR-3S ( standard kits, flat Mounting kits) or MBR-23-SM ( side mounting kits )
  3. Metal power plate for Single Power Installation MPP-01, for R3G redundant Power MPP-02
  4. AD-4V3H : Metal converter which enable 4 Vertical 5,25" into 3 Horizontal 5,25" Driver Bay
  5. Further extension application: built in HS-34S (SCA) / HS-344SA (serial ATA) 4 x 1" HDD carriers , or CSE-M35S / M35T, occupied 3 x 5,25"
Construction: All heavy-duty steel, AWG GAUGE 18 standard, SPCC, yellow color zincked
Power supply:

500W, 600W, 700W, Redundant PS:MRG-6500P ( MRG-5800V4V ) , R3G-6650P ( R3G-5800V4V ), FSP500-70RGHBB1 , FSP700-50RGHBE1

Ordering Information:

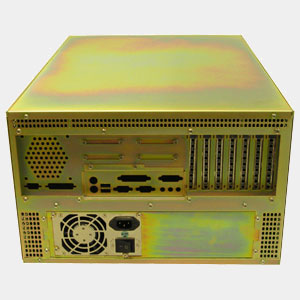

  • IPC607-1: 9*5.25 Drivers +1* CD Rom+1* FDD+7 slots rear window for ATX M/B
  • IPC607-2: 9*5.25" Drivers +1* CD Rom+1* FDD+7 slots rear window for 4 ways ATX M/B
