Heros Series - IPC620

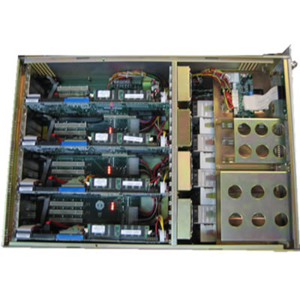

put in clip photo for enlarged image

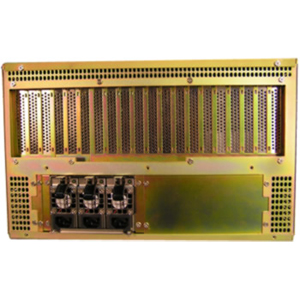

19" 6U 20-slot backplane factory automation chassis
With Flexible HDD Drivers design

Download Manual V1.41 for IPC620 HERE (PDF format)

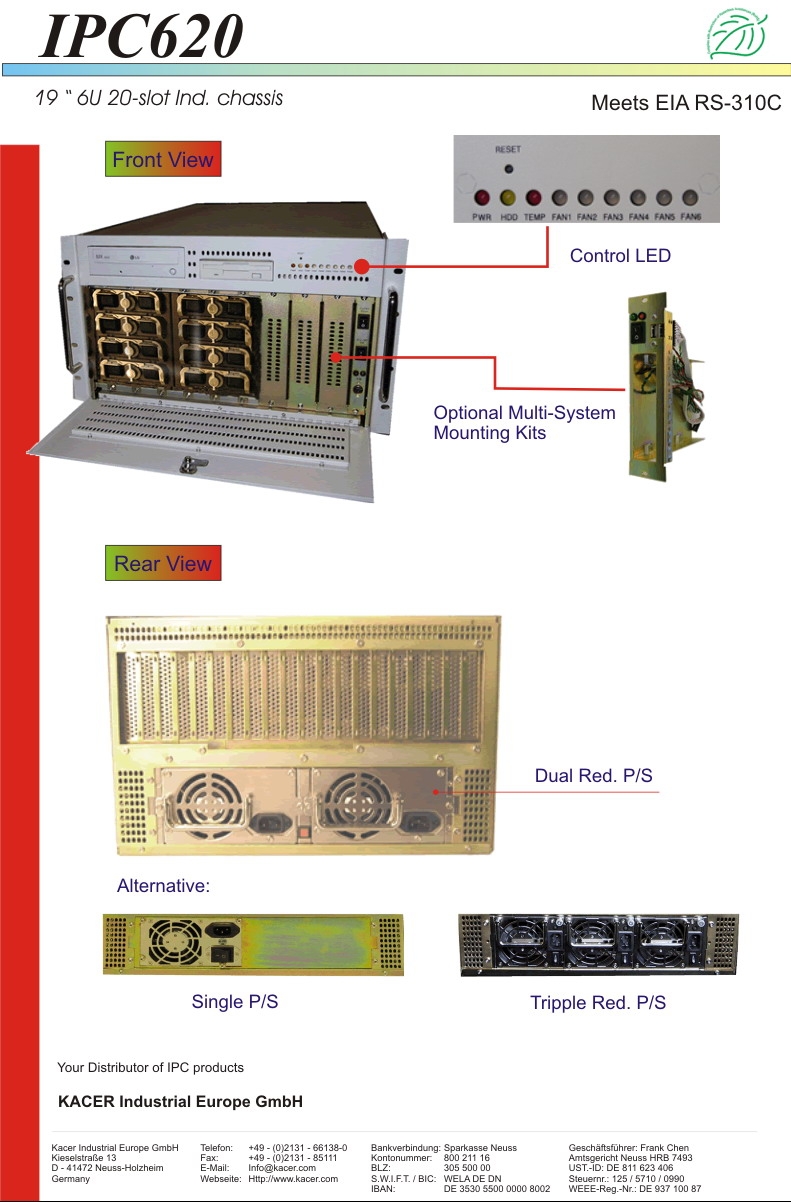

Datasheet: IPC620 ( JPG format )
Design feature:
  • Best design for thermal engineering and dynamics
  • Lockable Front door for High Security protection
Main Boards Supported:

Supports various types of 20-slot passive and active backplane

EMI:

Effective EMI shielding protect system against min. 2 GHZ of radiation.

Ventilation:

Six pieces Easy replacement 80mm DC--DC High speed Ball bearing fans(2 Ball)

Drive Space:
  • One 5.25" Drive and 3.5" drive reserved for CD Rom & Floppy
  • 9 pieces Flexible 5.25" HDD drivers spaces for different purpose HDD Backplane(SCA, Serial ATA or Parallel IDE)
LED Signals:

LED for HDD Access, fan , Temperature power status, picture

Ventilation Pathway

Air flow picture

Enviroment control board:

Fan, HDD acc. & Power, datasheet , picture

Weight:

Net 22Kg / Gross 25 Kg (PS/MB excluded )

Dimensions:
  • Case: W 482.6 x D 640 x H 267 mm
  • Packing: W 575x D 803x H429 mm
Optional accessories:
  1. dust filter
  2. Telescope slide TS-22-3S (Screws : 10 ø 32T), 3 section Telescope slide & Mounting Bracket MBR-3S ( standard kits, flat Mounting kits) or MBR-23-SM ( side mounting kits )
  3. Metal power plate for Single Power Installation MPP-01, for R3G redundant Power MPP-02
  4. AD-4V3H : Metal converter which enable 4 Vertical 5,25" into 3 Horizontal 5,25" Driver Bay
  5. Further extension application: built in HS-34S (SCA) / HS-344SA (serial ATA) 4 x 1" HDD carriers , or CSE-M35S / M35T, occupied 3 x 5,25"
Construction:

A heavy-duty steel, AWG GAUGE 18 standard, SPCC, yellow color zincked

Backplane support:

PICMG 1.3: PXE-19S2, PXE-19S

PICMG 1.0: PCI-17SQ, PCI-18SD, PCI-19S, PBP-19AI, PX-20S2, PX-20S3,    IP-18SD, IP-19S,  BP-20S

Power supply:

500W , 600W , 700W , Redundant PS:MRG-6500P ( MRG-5800V4V ), R3G-6650P ( R3G-5800V4V ), FSP500-70RGHBB1 , FSP700-50RGHBE1

Ordering Information:

IPC620: 9*5.25" Drivers +1* CD Rom+1* FDD+20 slots rear window for Passive backplane
