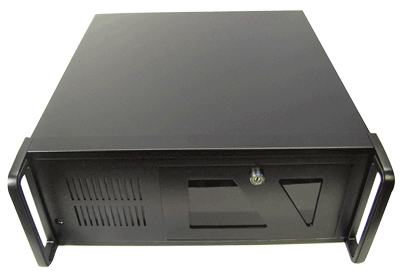

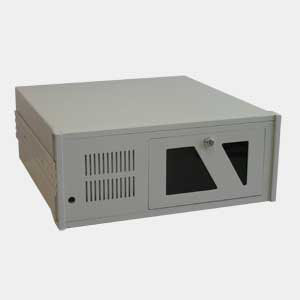

KR Series - KR-4071 / KR-4141 (V 4.0)

19" 4U FA Chassis

put in clip photo for enlarged image
Download

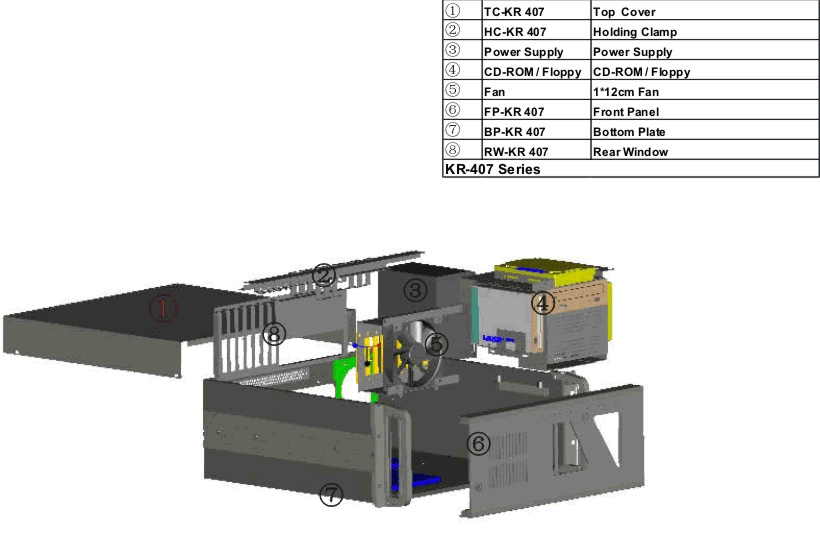

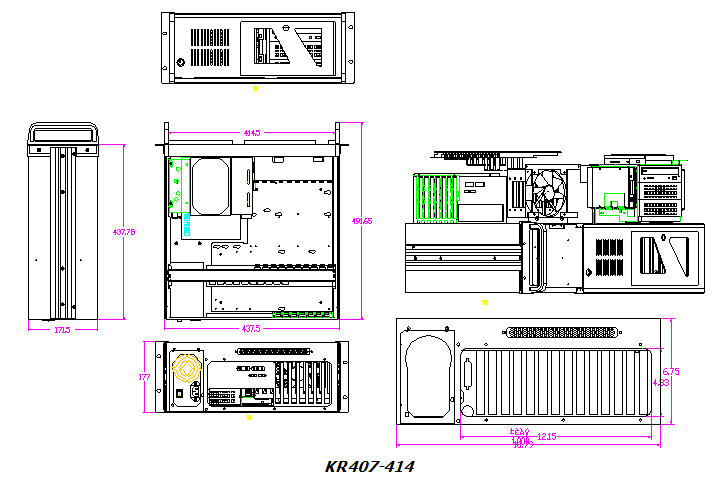

KR-4071 Dimension Drawing Exploring Drawing

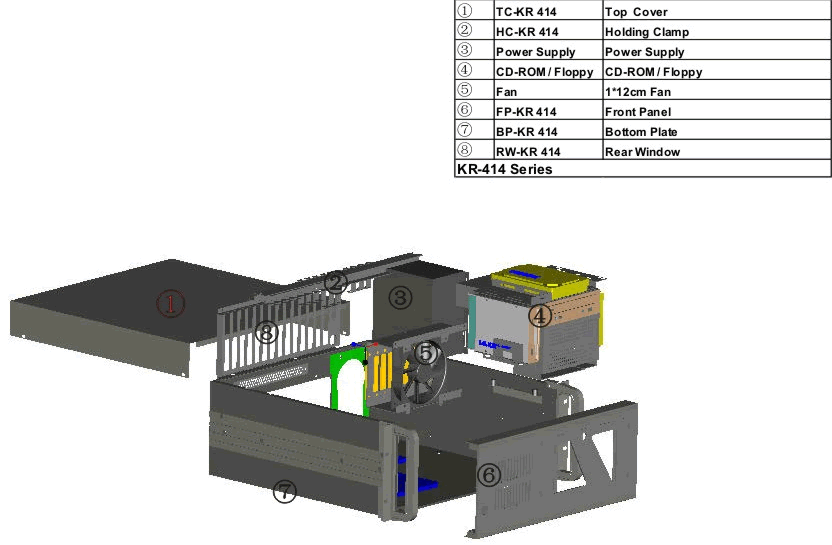

KR-4141 Exploring Drawing
Design feature:

The KR4071/4141 is a rugged 19" rackmount industrial PC chassis designed to withstand environment extremes, such as shock, vibration, dust and high temperature. Up to four disk drives can be installed. Versatile power supple options are avaliable.

Main Boards Supported:
KR-4071 support standard 12" x 9.6" (305 x 244 mm) ATX mainboards .
KR-4141 provides a 14-slot ISA/PCI backplane.
Construction: All heavy-duty steel, AWG GAUGE 18 standard, SECC
EMI:
CE compliant UL, C-UL approved
Ventilation:
one 12 cm cooling fan with air filter
Drive Spaces:

Vibration damped, up to 4 drives total, Front-accessable: Three half-height drivers and one 3.5" FDD, Internal:one 3.5" FDD

LED Signals:
LEDs for power On/Off, HDD activity and keyboard lock
Operating temperature:
0~50°C (32~122°F)
Relative humidity:

10~95% @ 40°C, non-condensing

Weight:

Net 12.5 Kg / Gross 16 Kg (PS/MB excluded )

Dimensions:
  • 482x 177x 452 mm ( 19"x 7"x17.8") , Mechanic Drawing
  • carton Packing: 645 x 570 x 280 mm ,  3.66 CBF
Optional accessories:
  • Redundant Power supply Mounting Bracket , B300050167for MRT, MRG,( MRP & MRW supported by new version ) this bracket donot sell seperately, only come with redundant power supply for KR-4071/4141
  • Desktop Handel: KR-4D , Picture
  • Dual Systems Control Panel: CP-2S ,( Reset, USB *2, Power switches, Power on LED; For KR4141 CPU card version)
  • Telescope slide TS-22-3S & Mounting Bracket MBR-3S ( standard kits, flat Mounting kits) or MBR-23-SM ( side mounting kits )
  • Dust filter
  • Standard built in ATX Power swith , option: AT power switch ( order product code SW-R-407-001 )

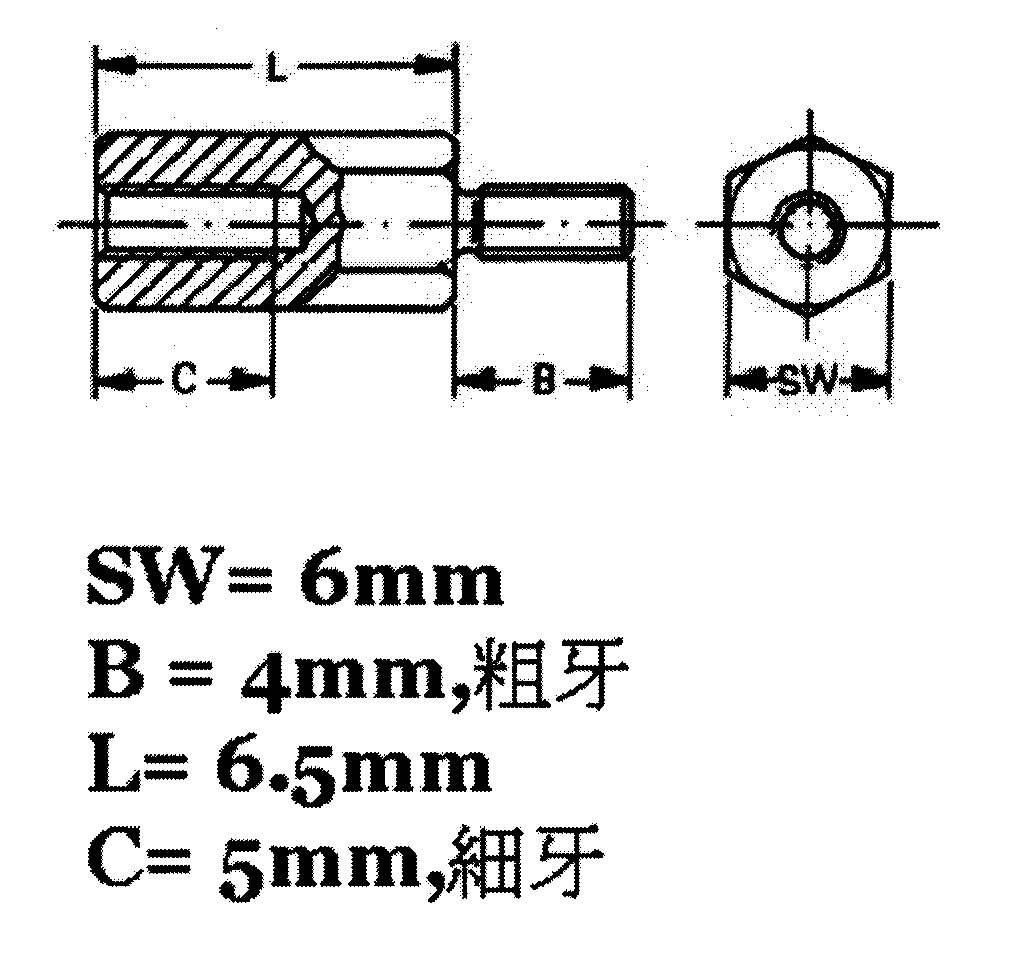

  • Copper spacer CPS02, Picture
Power supply:
  1. 300W/ 460W / 500W / 600W / 700W . PS2 size P/S
  2. PS2 size redundant Power supply MRT-6320P , MRP-6420P, MRW-6420P, MRG-6500P, R3G-6650P Redundant P/S Support MRT, MRG ( MRP & MRW will be supported in new version.) Pls order Mounting Bracket B300050167 this bracket donot sell seperately, only come with redundant power supply for KR-4071/4141
Backplane for KR4141
  • PXE-9S2, PXE-13S, SPXE-14S, PE-10S, PE-10S2, PE-13SD
  • PCI-14S,PCI-14S2, PCI-14S3 (Passive )
  • PX-14S,PX-14S2,PX-14S3,PX-14S5 (Active )
  • IP-13SD , IP-14S
  • BP-14S
Chassis Ordering Information:
  1. KR-4071 ( ATX Mother Board Version)
  2. KR-4141 ( 14 Slots rear window for CPU card Version )
    Standard deliver with ATX Power switch. AT Power switch pls specified in order.
  3. power supply or redundant power supply
  4. Desktop Handel: KR-4D , Picture
  5. Telescope slide TS-22-3S & Mounting Bracket MBR-3S ( standard kits, flat Mounting kits) or MBR-23-SM ( side mounting kits )
Option Chassis Color

Black
