IPC4440MB(Version 3 )

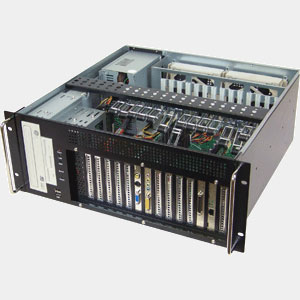

19" 4U FA Chassis for 14 slots PICMG1.3 Backplane

put in clip photo for enlarged image
What's new in IPC4440MB
Design feature:
  • Best design for thermal engineering and dynamics
  • Flexible and extendable anti-vibration card holding Clamps.
  • Quick and easier replacement hot swapable Fan module.
Construction:
  • All heavy-dutyCold rolled Electroplated steel, AWG GAUGE 18 standard, SECC
  • Double side Anti-Vibration holding Clamps, fix full range of add on card,Video Demo
  • Single or redundant power supplies supported
  1. rear installed single power
  2. rear installed redundant power supply with power Frame

EMI:

Effective EMI shielding protect system against min. 3 GHZ of radiation.

Ventilation:

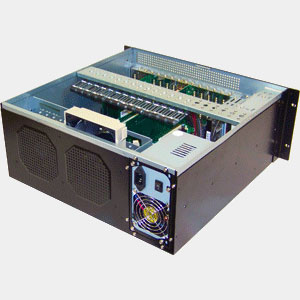

2 x 120mm DC--DC High speed Ball bearing 4 Pin PWM, Hot swappable fan(2 Ball) in rear ( see picture ), ; Hot swappable fan video demo

Drive Space:

1 x 5.25" driver spaces,1 x 3.5" Floppy , 1 x 3.5" HDD driver spaces

LED Signals / USB :

HDD , Lan , Power 2 x USB 3.0

Card holding:

Standard built in 6 pcs anti-vibration add-in card holding Clamps (CHC4450); Zero difference Card holding bar design

Backplane Supported:

Supports 14-slot backplanes

PICMG 1.0: PCI-13SD,PCI-14S2, PCI-14S3, PBP-14P4, PBP-14AC, PX-14S, PX-14S2, PX-14S3, PX-14S5, IP-13SD, BP-14S

PICMG 1.3: PBPE-12A9, PXE-9S2, PXE-13S, SPXE-14S, PE-10S, PE-10S2, PE-13SD

Weight:

Net 10 Kg / Gross 14 Kg (PS/MB excluded )

Dimensions:
  • W431 x D 440 x H 175 mm ( Chassis )
  • W 631 x D 620 x H 370 mm ( Carton Packing ) , i.e.5.12 cubic feet
Optional accessories:
Power supply:

300W / 460W / 500W / 600W /700W. PS2 size P/S or PS2 size redundant Power supply MRT-6320P , MRP-6420P, MRW-6420P, MRG-6500P, FSP500-70RGHBB1 , FSP700-50RGHBE1

Chassis Ordering Information:
  1. IPC4440MB
  2. Power supply
  3. TS-23S
  4. CDFD-combo-V4
  5. option:  AVF2120, 2 x 12 cm Fan ( OEM )
  6. CHC4450: anti-vibration add-in card holding clamp
Download

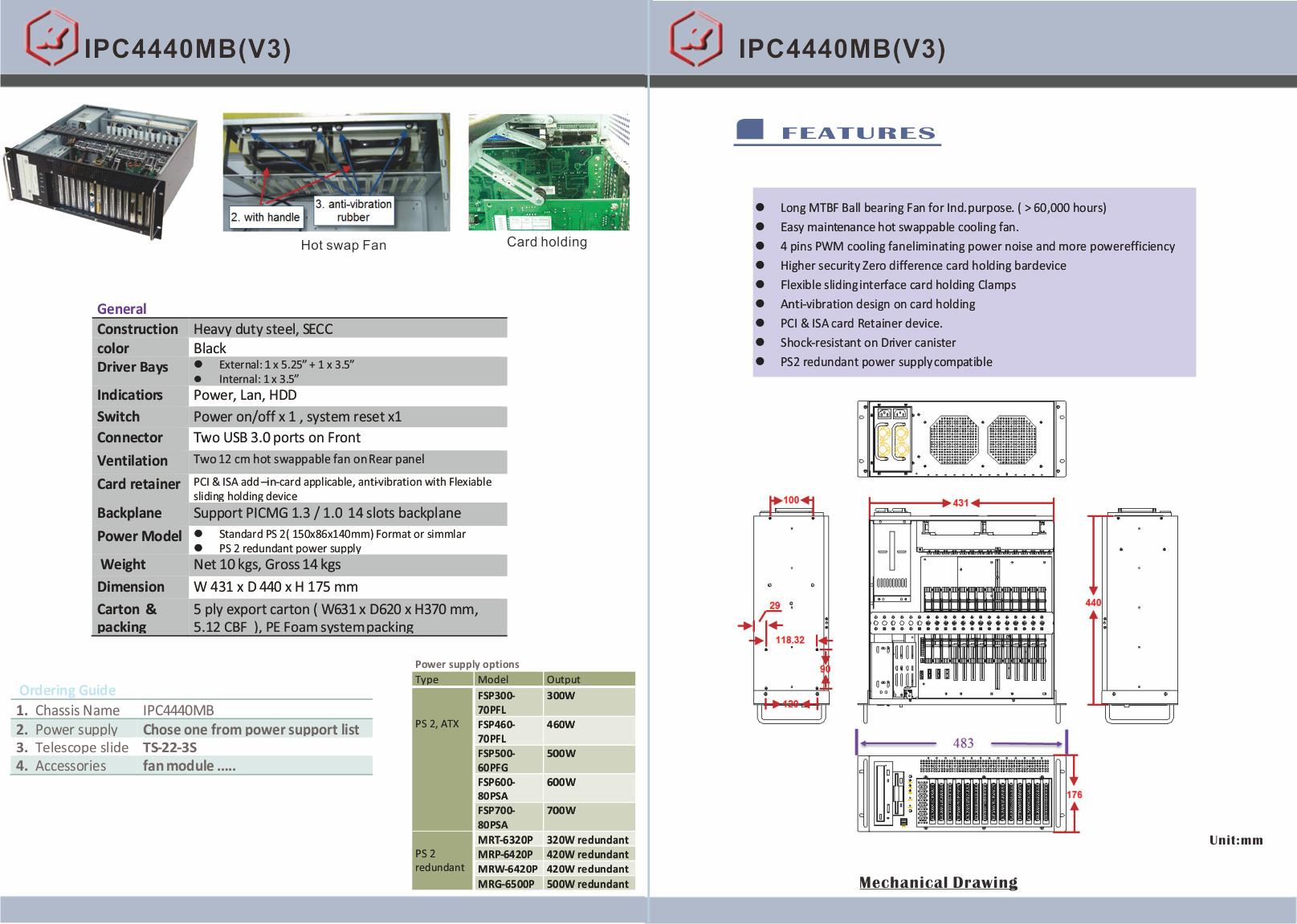

  1. Datasheet [Format:PNG]

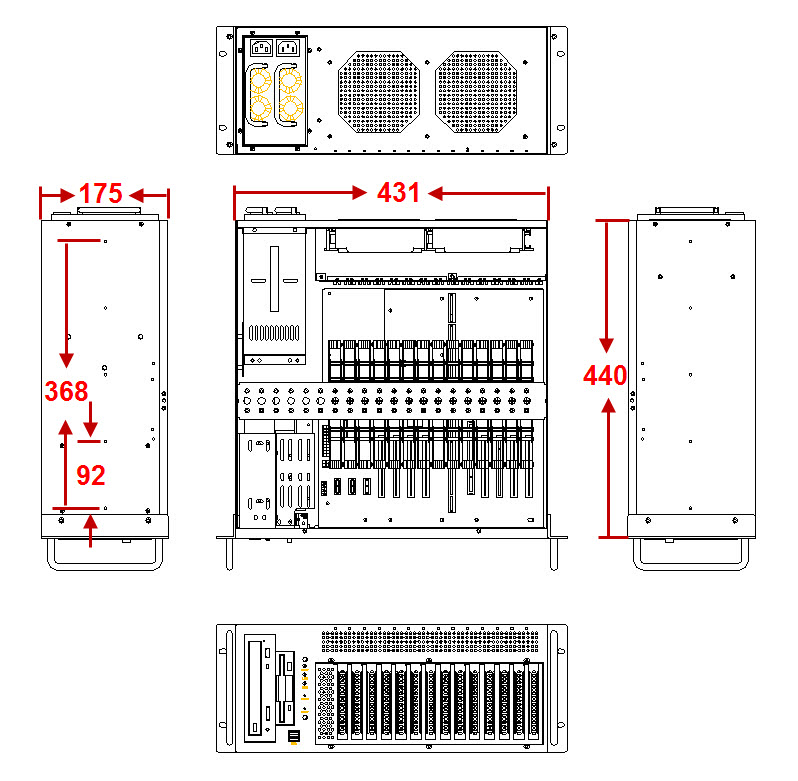

  2. Mechanic Drawing[Format:JPG]
  3. IPC4440MB ManualFormat:PDF]
