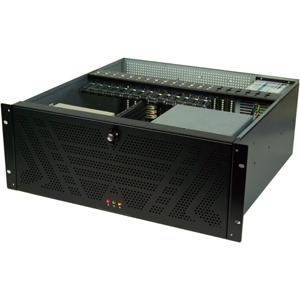

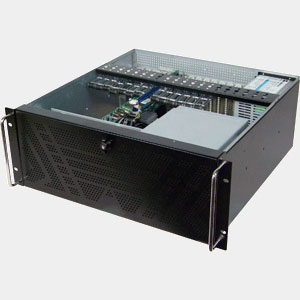

19" 4U FA Chassis for 14 slots PICMG1.3 Backplane

84733080

Design feature:

• Best design for thermal engineering and dynamics
• Lockable Front door for High Security protection
• Flexible and extendable anti-vibration card holding Clamps.
• Quick and easier replacement hot swapable Fan module.

Construction:

• All heavy-dutyCold rolled Electroplated steel, AWG GAUGE 18 standard, SGCC
• Double side Anti-Vibration holding Clamp, fix full range of add on card, Video Demo
• Single or redundant power supply supported

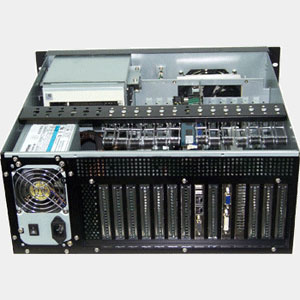

1. rear installed single power
2. rear installed redundant power supply with power Frame, picture

EMI:

Effective EMI shielding protect system against min. 3 GHZ of radiation.

Ventilation:

1 x 120mm DC--DC High speed Ball bearing 4 Pin PWM, Hot swappable fan(2 Ball) in Front( see picture ), ; Hot swappable fan video demo

Drive Space:

3 x 5.25" driver spaces,1 x 3.5" Floppy , driver spaces

LED Signals / USB :

HDD , Lan , Power / 2 x USB 3.0

Card holding:

Standard built in 6 pcs anti-vibration add-in card holding Clamps (CHC4450); Zero difference Card holding bar design

Backplanes Supported:

Supports 14-slot backplanes

PICMG 1.0: PCI-13SD，PCI-14S2, PCI-14S3, PBP-14P4, PBP-14AC, PX-14S, PX-14S2, PX-14S3, PX-14S5, IP-13SD, BP-14S

PICMG 1.3: PBPE-12A9,PXE-9S2, PXE-13S, SPXE-14S, PE-10S, PE-10S2, PE-13SD

Weight:

Net 10.5 Kg / Gross 14 Kg (PS/MB excluded )

Dimensions:

• W431 x D 450 x H 175 mm ( Chassis )
• W 631 x D 620 x H 375 mm ( Carton Packing ) , i.e.5.18 cubic feet

Optional accessories:

• Telescope slide TS-22-3S (Screws : M4)& Mounting Bracket MBR-3S ( standard kits, flat Mounting kits) ; Telescope slide Installation video
• AT switch S-AT-429 piture
• CDFD-combo-V4
• M14T
• ST-1040SS
• ST-116TL
• ST-2335TL
• ST-3435TL
• AVF280 < Photo11 > 2 x 8 cm Fan  ( OEM )
• AVF1120 < Photo12 > 1 x 12 cm Fan ( OEM )
• anti-vibration add-in card holding clamp(CHC4450)

Power supply:

300W / 460W / 500W / 600W / 700W . PS2 size P/S or PS2 size redundant Power supply MRT-6320P , MRP-6420P, MRW-6420P, MRG-6500P, R3G-6650P , Twins-500 , Twins-700(recommended)

Chassis Ordering Information:

1. IPC4450MB
2. TS-22-3S
3. Power supply
4. CDFD-combo-V4
5. hot swappable HDD Frane: M14T, ST-1040SS, ST-116TL, ST-2335TL, ST-3435TL
6. AVF280, 2 x 8 cm Fan  ( OEM )
7. AVF1120, 1 x 12 cm Fan ( OEM )
8. CHC4450: anti-vibration add-in card holding clamp

Download

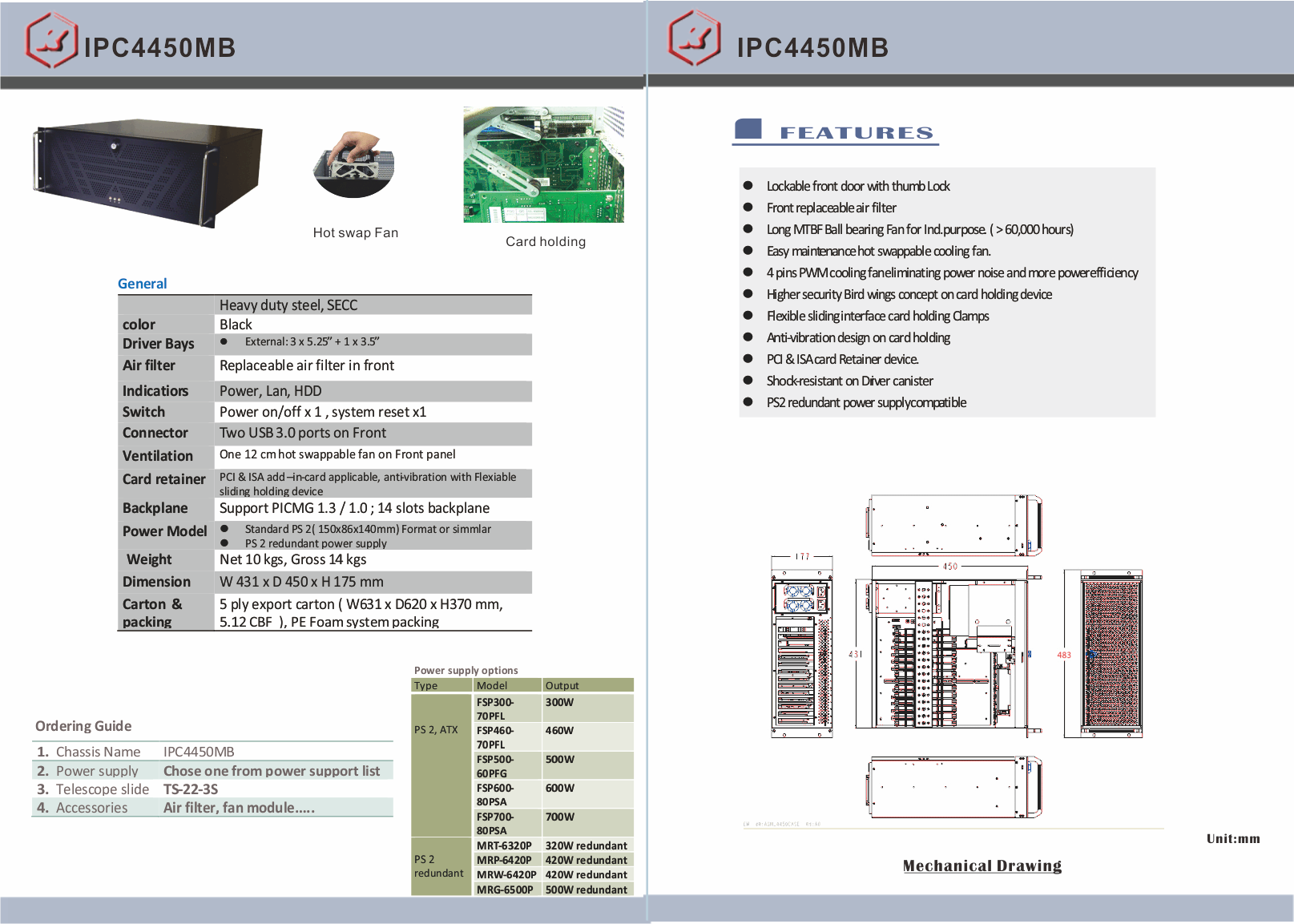

1. Datasheet[Format:PNG]

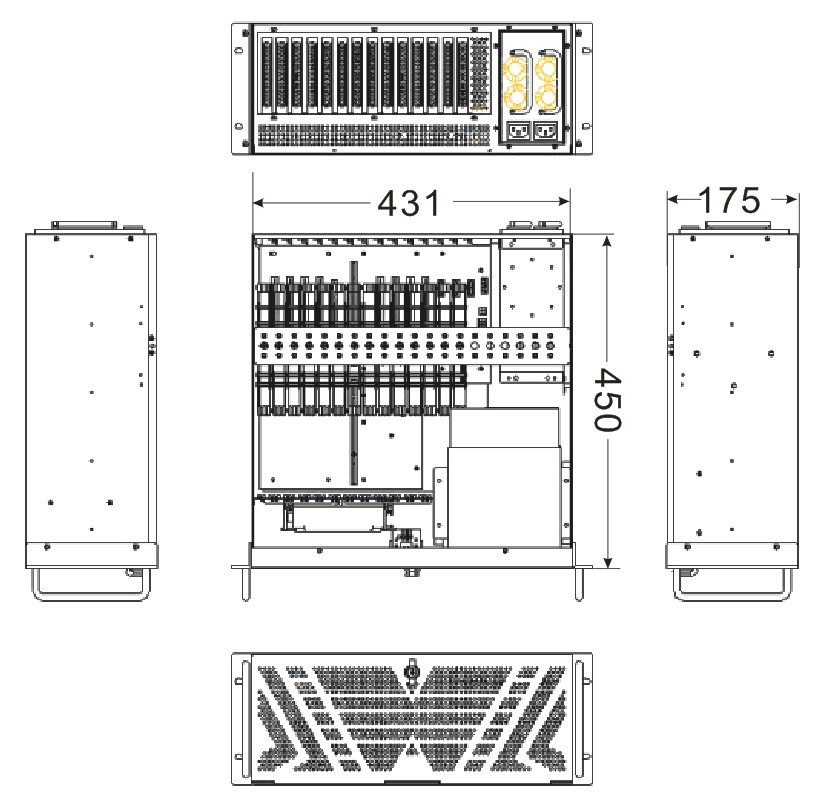

2. Mechanic Drawing [Format:JPG]
3. IPC4450MB Manual (V1.10)[Format:PDF]
