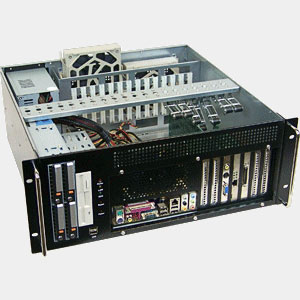

19" 4U FA Chassis front I/O access, 12" x 13" ATX MB

Design feature:

• Best design for thermal engineering and dynamics
• Flexible and extendable anti-vibration card holding Clamps.
• Quick and easier replacement hot swapable Fan module.

Construction:

• All heavy-dutyCold rolled Electroplated steel, AWG GAUGE 18 standard, SECC
• Double side Anti-Vibration holding Clamps, fix full range of add on card,Video Demo
• Single or redundant power supply supported

1. rear installed single power
2. rear installed redundant power supply with power Frame, picture

EMI:

Effective EMI shielding protect system against min. 3 GHZ of radiation.

Ventilation:

2 x 120mm DC--DC High speed Ball bearing 4 Pin PWM, Hot swappable fan(2 Ball) in rear ( see picture ), plus 1 x 80mm DC--DC High speed Ball bearing 4 Pin PWM fan(2 Ball) in Front ( see picture) ; front panel also possibile to built in 2 x 8 (or 6 ) cm fan; Hot swappable fan video demo

Drive Space:

1 x 5.25" driver spaces,1 x 3.5" Floppy , 1 x 3.5" HDD driver spaces

LED Signals / USB :

HDD , Lan , Power /  2 x USB 3.0

Card holding:

Standard built in 3 pcs anti-vibration add-in card holding Clamps (CHC4450); Zero difference Card holding bar design

Main Boards Supported:

Supports Full size ATX 12" x 13" main board

Weight:

Net 10 Kg / Gross 14 Kg (PS/MB excluded )

Dimensions:

• W431 x D 440 x H 175 mm ( Chassis )
• W 631 x D 620 x H 370 mm ( Carton Packing ) , i.e.5.12 cubic feet

Optional accessories:

• Telescope slide TS-22-3S (Screws : M4)& Mounting Bracket MBR-3S ( standard kits, flat Mounting kits) ; Telescope slide Installation video
• AT switch S-AT-429 picture
• CDFD-combo-V4
• option:  AVF2120 < Photo 10 > 2 x 12 cm Fan ( OEM )
• anti-vibration add-in card holding clamp(CHC4450)

Power supply:

300W / 460W / 500W / 600W/ 700W. PS2 size P/S or PS2 size redundant Power supply MRT-6320P , MRP-6420P, MRW-6420P, MRG-6500P, R3G-6650P , Twins-500, Twins-700

Chassis Ordering Information:

1. IPC4440MA
2. TS-22-3S
3. Power supply
4. CDFD-combo-V4
5. option:  AVF2120, 2 x 12 cm Fan ( OEM )
6. extra fan: 6 cm / 8cm
7. CHC4450: anti-vibration add-in card holding clamp

Download

1. Datasheet[Format:PNG]
2. Mechanic Drawing[Format:JPG]
3. IPC4440MA Manual[Format:PDF]
